CARLI SUSPENSION 14-18 RAM 2500 4X4 DIESEL 3.25" LIFT EVENTURE SYSTEM R1 COILS

Name: CARLI SUSPENSION 14-18 RAM 2500 4X4 DIESEL 3.25" LIFT EVENTURE SYSTEM R1 COILS
Brand: NCB Diesel
SKU: CS-D3-EV25-14-D
Price: 8541.0 USD
Availability: InStock

SKU:CS-D3-EV25-14-D

$8,541.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

Product Description:

Front Lift	Rear Lift
3.25″	0.5″ – 2″

Front Travel	Rear Travel
9.3″	11″

Shocks	Tire Fitment
2.5″ Carli/SDI Remote Reservoir	37″ x 12.5″

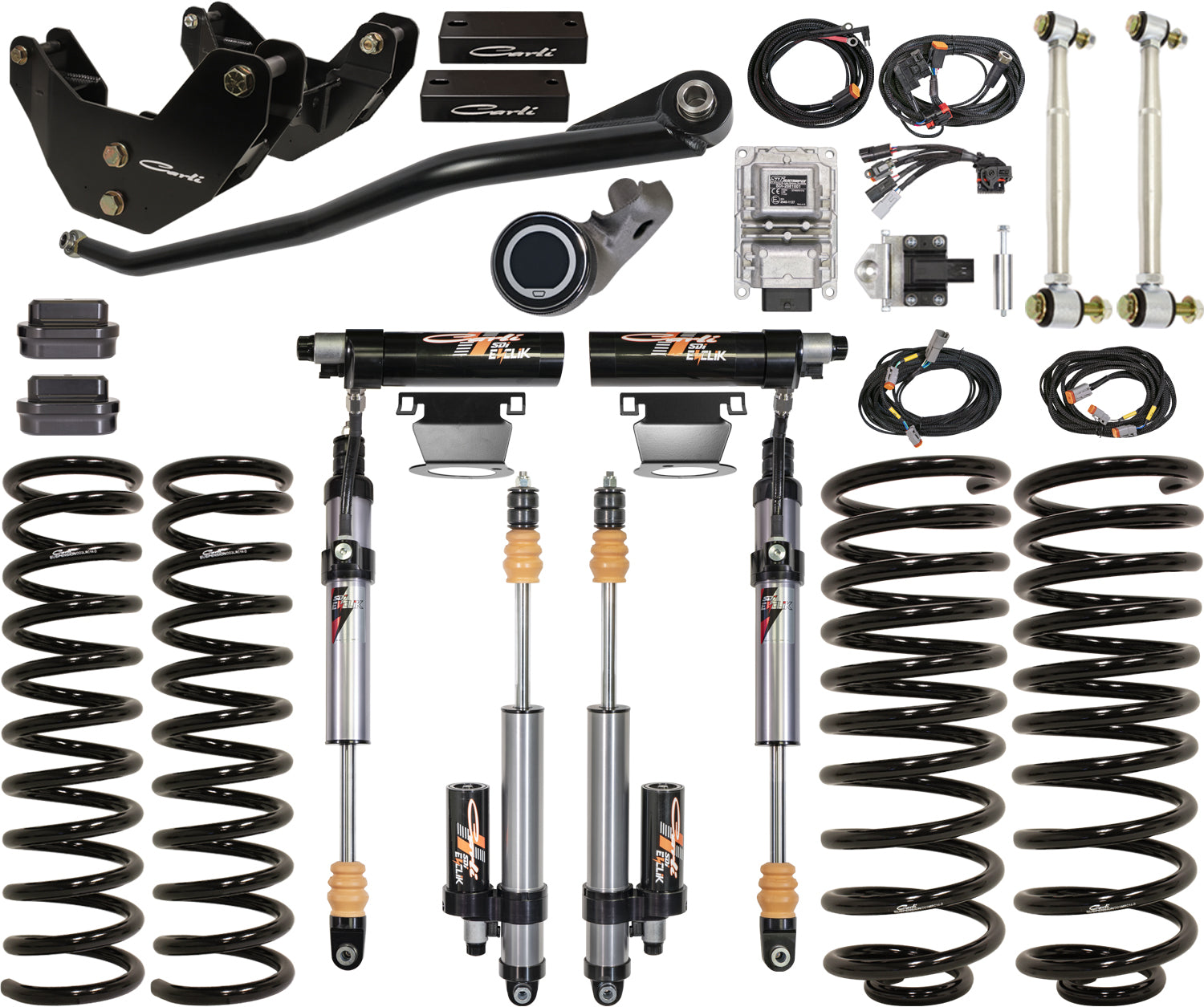

Ram 3.25" E-Venture System, Diesel, 2014-18 2500 Base Kit, R1 Coils

Base Kit Includes:

CS-DEL-R-14	Rear Sway Bar End Links
CS-DFBD-1	Front Bump Drops
CS-DLRC-14-D	Front Linear-Rate Coil Springs
CS-DMRC-14-R1	Rear Multi-Rate Coil Springs, R1
CS-DATB-1419	Front Track Bar
CS-DRAD-14	Radius Arm Drops
CS-DRBD-AL	Rear Bump Drops
CS-DEV25SPKG-14-D	Ram EVenture Shock Package with Reservoir Mounts, Stainless Shafts, Brake Line Tabs

$8,541.00

Rear Track Bar

*REQUIRED* - The rear axle of the Ram 2500 shifts laterally as it cycles through suspension travel. This rear side-to-side movement, referred to as "yaw", is felt in-cab at the least-opportune times. We offer two options, a drop bracket to minimize the rear yaw as much as is possible with the short factory track bar, or our Carli Extended Rear Track Bar can be optioned offering a massive increase in length, and reduction in angle, to effectively eliminate this yaw, resulting in far more composed and predictable handling.

Front Sway Bar Selection

*REQUIRED* - You MUST select a Sway Bar option with the BASE Kit. This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops is only recommended for customers requiring the stiff rate of the factory sway bar - i.e.: those with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Low Mount Steering Stabilizer

*OPTIONAL* - Bolt in steering stabilizer (factory location). Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable

High Mount Steering Stabilizer

*OPTIONAL* - Bolt in stabilizer adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

Fabricated Radius Arms

*OPTIONAL* - Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Front Differential Guard

*OPTIONAL* - Better to have it and not need it than need it and not have it.

Lifetime Ball Joints

*OPTIONAL* - Do your ball joints once, grease every oil change and forget they exist...
