2019-2024 RAM 2500 4X4 DIESEL 3.25" LIFT E-VENTURE SYSTEM
2019-2024 RAM 2500 4X4 DIESEL 3.25" LIFT E-VENTURE SYSTEM
SKU:CS-D3-EV25-19-D
Couldn't load pickup availability
Share
Product Description:
The future has arrived. The E-Venture system stays two steps ahead of the driver thanks to data input from a provided engine mounted sensor and factory sensors via the OBDII port. The in-cab mounted “Brain” of this system processes the information through a proprietary algorithm. Thanks to this cornucopia of electronic goodness, the E-Venture System reads and reacts the terrain 250 times per second. The resulting ride is the Best. The “best” is an absolute statement… On road? Off Road? Gravel? Rutted, pot-hole filled unmaintained lease roads? Yes… Yes to all of it. The systems takes the capability of a 2.5″ Shock well beyond the threshold we’ve come to expect!

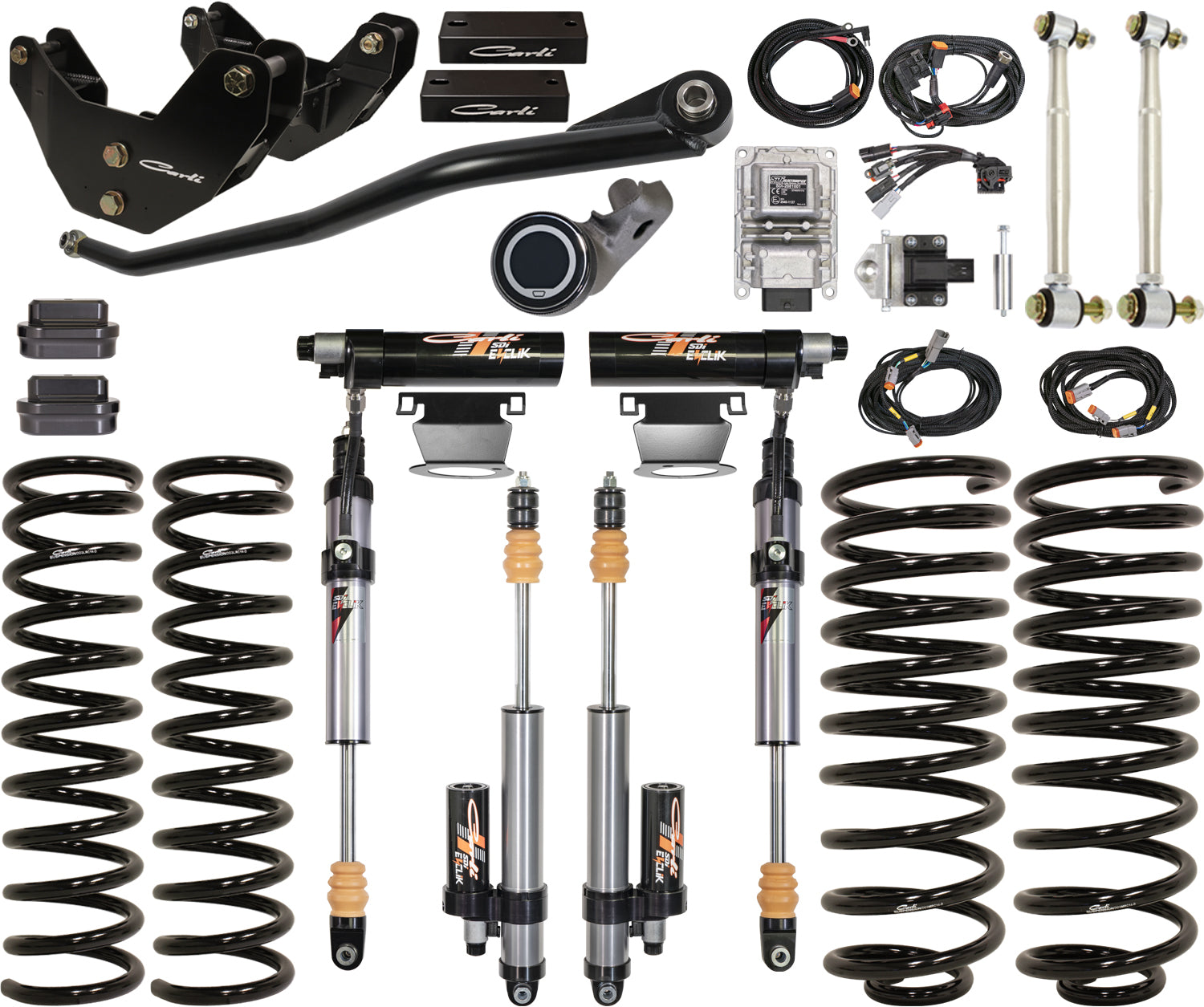

Base Kit Includes:
| CS-DEL-R-14 | Rear Sway Bar End Links |
| CS-DFBD-1 | Front Bump Drops |
| CS-DLRC-14-D | Front Linear-Rate Coil Springs |
| CS-DMRC-14-R1 | Rear Multi-Rate Coil Springs, R1 |
| CS-DATB-1419 | Front Track Bar |
| CS-DRAD-1419 | Radius Arm Drops |
| CS-DRBD-AL | Rear Bump Drops |
| CS-DPRBDROP-14-R | Rear Track Bar Drop |
| CS-DEV25SPKG-19-D | Ram EVenture Shock Package with Reservoir Mounts, Stainless Shafts, Brake Line Tabs |
Front Sway Bar Selection
*REQUIRED* - You MUST select a Sway Bar option with the BASE Kit. This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops is only recommended for customers requiring the stiff rate of the factory sway bar - i.e.: those with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.
-
14-24 RAM 2500/3500 4X4 STOCK SWAY BAR DROP BRACKET - 3.25" LIFT14-24 RAM 2500/3500 4X4 TORSION SWAY BAR - 3" LIFT
SKU: CS-DSBD-14
- In-house machined billet aluminum
- Hard-Anodized for corrosion resistance
- Correct factory sway bar geometry on 3" Lift
- Fitment: 2014+ Ram 2500, 4×4
- Fitment: 2013+ Ram 3500, 4×4
Low Mount Steering Stabilizer
*OPTIONAL* - Bolt in steering stabilizer (factory location). Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.
-
No Low Mount Steering Stabilizer14-24 RAM 2500/3500 4X4 LOW MOUNT STEERING STABILIZER - STAINLESS STEEL
SKU: CS-DLMSS-14
- Direct bolt-in replacement
- Corrects left tire pull, adjustable
- Inside the Carli Stainless Stabilizer
- Fitment: 2014+ Ram 2500, 4×4
- Fitment: 2013+ Ram 3500, 4×4
High Mount Steering Stabilizer
*OPTIONAL* - Bolt in stabilizer adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.
-
No High Mount Steering Stabilizer19-24 RAM 2500/3500 4X4 HIGH MOUNT STEERING STABILIZER KIT - LIFTED
SKU: CS-DHMSS-19
- Simple, Bolt-in Installation
- Corrects right tire pull, adjustable
- Combines with Low-Mount for opposing stabilization
- Inside the Carli Stainless Stabilizer
- Fitment: 2019+ Ram 2500/3500, 4×4, Including Power Wagon
- Fitment: 2014-18 Ram 2500/3500, 4×4 with 19+ Drag Link
Fabricated Radius Arms
*OPTIONAL* - Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.
-
No Fabricated Radius Arms14-24 RAM 2500/3500 4X4 FABRICATED RADIUS ARM SYSTEM - 3.25" LIFT
SKU: CS-DFRA-14
- Massive Strength Upgrade vs. Stock Arm
- Improved ride quality and control
- Internal X-Bracing & Serviceable 17-4 Stainless Spherical Joints
- 12" Quad Wrap Limit Straps, For 3.25" Lift Systems
- Requires Radius Arm Drop Brackets with Carli 3" Front Lift
- Fitment: 2014+ Ram 2500, 4×4
- Fitment: 2013+ Ram 3500, 4×4
Front Differential Guard
*OPTIONAL* - Better to have it and not need it than need it and not have it.
-
No Front Differential Guard14-24 RAM 2500/3500 4X4 FRONT DIFFERENTIAL GUARD
SKU: CS-DFDG-14
- Protection for your Ring-Gear
- Bolts On In Minutes
- 1/4" Wall Cold-Rolled Steel Construction
- Grade 8 Hardware
- Fitment: 2014+ Ram 2500, 4x4
- Fitment: 2013+ Ram 3500, 4x4
- Power Wagons may require modification to the Diff Guard or Lower Diff Housing.
Lifetime Ball Joints
*OPTIONAL* - Do your ball joints once, grease every oil change and forget they exist...
-
No Lifetime Ball Joints
13-24 RAM 2500/3500 4X4 EXTREME DUTY BALL JOINTS, UPPER & LOWER
SKU: CS-DBJP-14
- Set of Upper and Lower Ball Joints
- LIFETIME Advanced-Replacement Warranty
- Copper Plated, Carburized and Dry-Lubed
- Includes a tube of Redline CV2 Grease
- Fitment: 2013+ Ram 3500 4x4
- Fitment: 2014+ Ram 2500 4x4
