20-22 Ford Super Duty XB Evo LED Headlights

20-22 Ford Super Duty XB Evo LED Headlights

LF2-508

$1,999.00 USD
$1,999.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Description:

DESCRIPTION

The all-new XB Evo headlights (SKU LF2-508) are a showcase of everything Morimoto is made of. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. Our patent-pending heating system warms the surface temperature of the headlight lens to minimize frost buildup when driving through wet and snowy conditions in the wintertime. The signal swap system allows users to personalize how the daytime running lights and turn signals operate according to personal preference, all through a simple plug-and-play key on the back of each headlight. The daytime running light can be configured to run full-time in either white or amber with no compromise in intensity either way. When starting your Super Duty, the optics will automatically illuminate in a multi-stage sequence before turning back off. XB Evo headlights aren't cheap, but they are built to a high standard and should easily last the life of your truck! We're proud to stand behind the product with an industry-leading five-year warranty.

FEATURES & BENEFITS

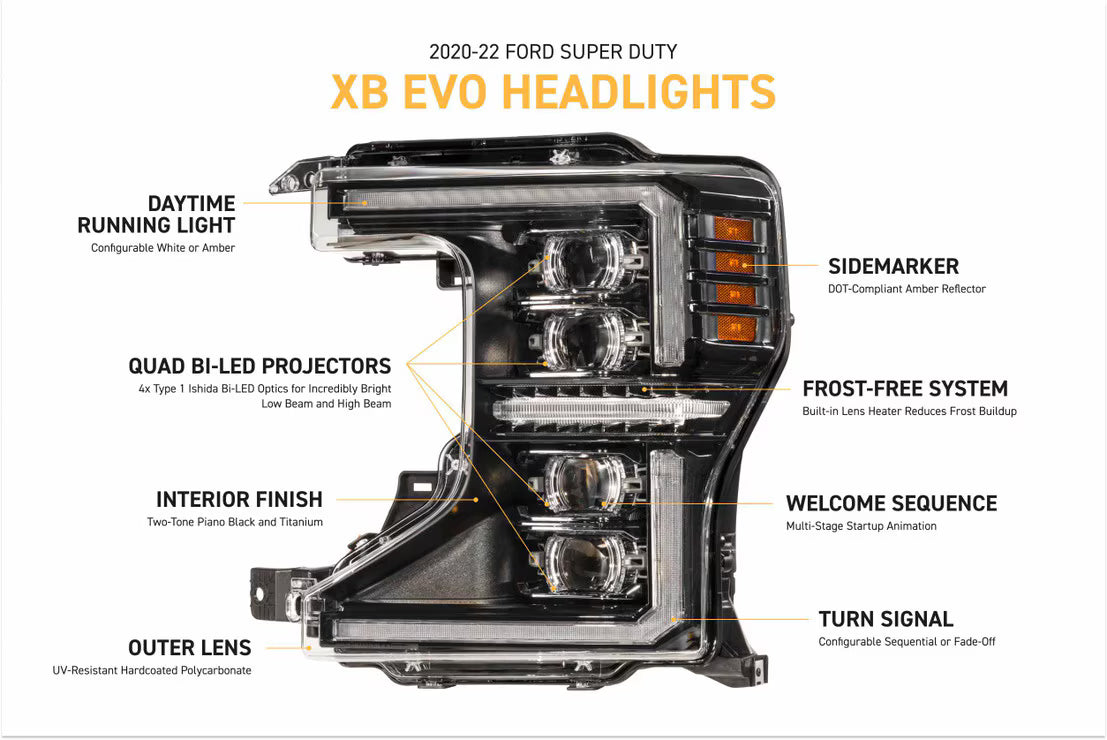

  • XB Evo: Much more than a design refresh, these headlights showcase Morimoto's commitment to technology, compliance, quality, styling, and performance for serious enthusiasts.

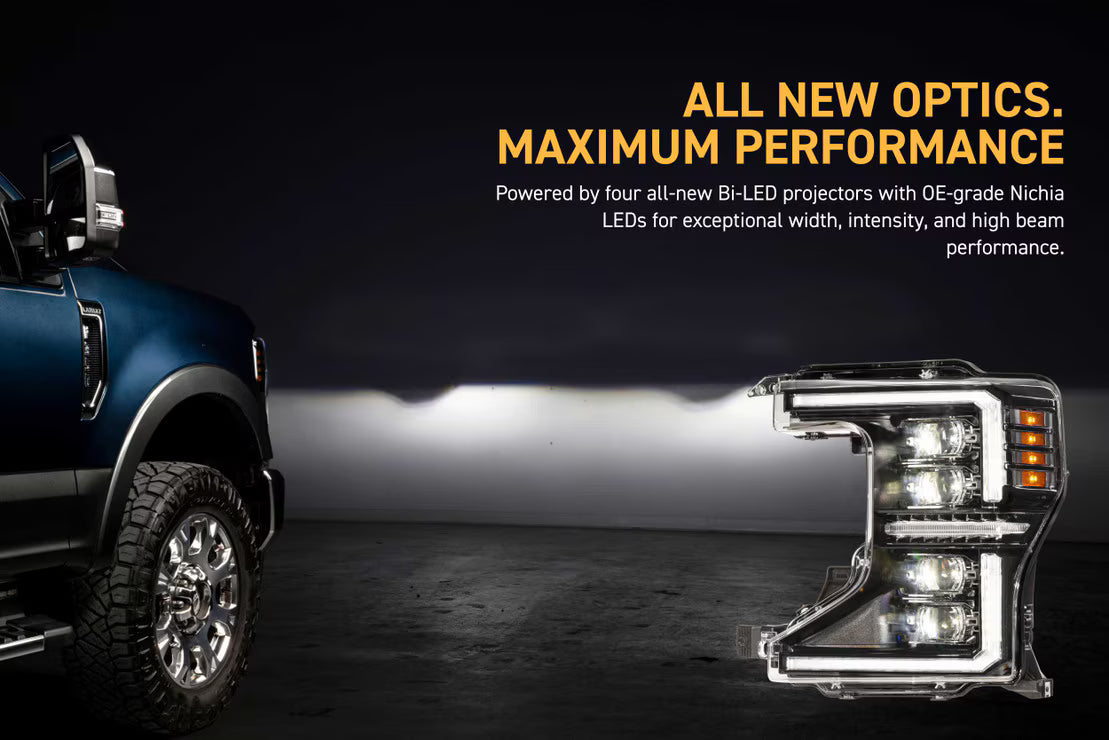

  • All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizing four Bi-LED projectors powered by Nichia's latest automotive LEDs, nothing will outperform the XB Evo.
  • On and Off Road: DOT Compliant for public roads in the USA in standard form, with an optional Supercharged LED driver to boost intensity by 30%, making them the brightest option for Super Duty owners who want to maximize output for off-road use.
  • Frost-Free System: Warms the lens surface to prevent frost buildup during wet and snowy conditions in winter. Activated by flashing the high beams four times when the temperature drops below 5C/41F, this ensures consistent headlight performance in cold climates.
  • Signal Swap Keys: Enable users to personalize the operation of daytime running lights and turn signals via a plug-and-play key. The XB Evo can be configured to run with white or amber daytime running lights and sequential or standard turn signals.
  • Designed, engineered, and tested: In the USA by Morimoto, the XB Evo headlights are built with the highest standards, using the latest in technology and raw materials available today, and are backed with an industry-leading five-year warranty.

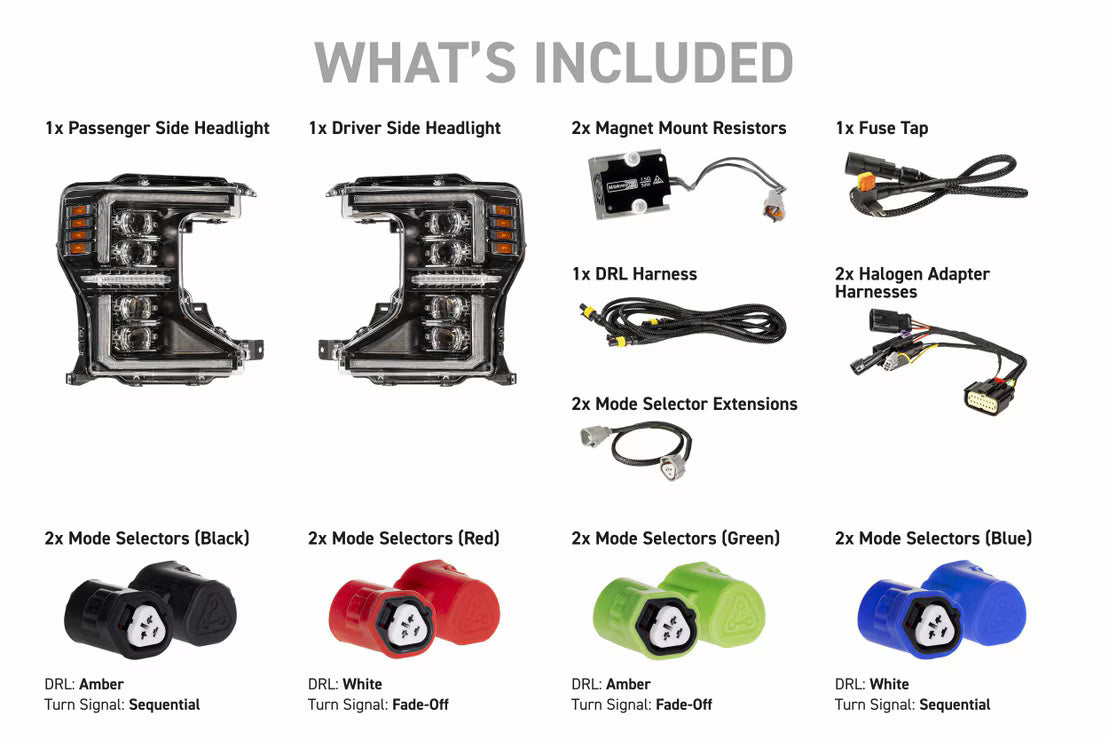

WHAT’S INCLUDED

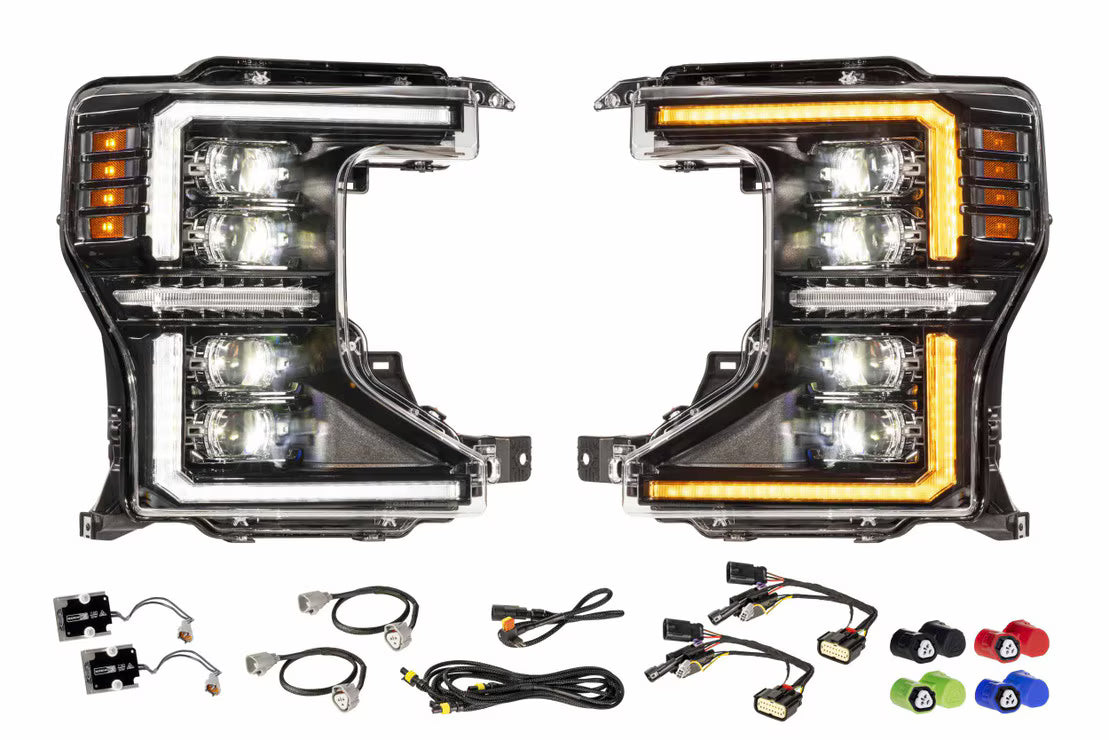

  • Headlights : One Pair (1x RH / Passenger Side Headlight, 1x LH Driver Side Headlight)

  • Accessories : 2x Halogen Adapter Harnesses, 2x Magnet Mount Resistors, 1x Fuse Tap, 1x DRL Harness, 2x Mode Selector Extensions, 8x (Four Pairs) Mode Selectors

  • Optional Supercharged Drivers : LF2-DRVSC28

  • Optional Clear Lamin-X Film : LMX2-508

COMPATIBILITY

  • Ford F-250 Super Duty : 2020-2022

  • Ford F-350 Super Duty : 2020-2022

  • Ford F-450 Super Duty : 2020-2022

  • Replaces OE Part # : LC3Z13008B, LC3Z13008A, LC3Z13008K, LC3Z13008M, LC3Z13008J, LC3Z13008L

  • Supercharged Drivers : Compatible with LF2-DRVSC28 drivers

  • NOTE : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

COMPLIANCE

DOT, SAE, FMVSS108 STANDARDS

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).

INSTALLATION DOCUMENTS
