Product Description:
NOTE: This shock package is only intended as an upgrade to existing Carli Suspension Lift Systems; we DO NOT recommend pairing this with other lift kits nor will we guarantee compatibility.
On-road or off, the E-Venture Kit stays two steps ahead. More compliant than a Commuter; more stable than a Pintop. When customers ask if this kit suits their application, the answer is a resounding “Yes” before hearing it. Finally, there’s no sacrificing off-road performance for on-road prowess.
7.3L GAS – ONLY

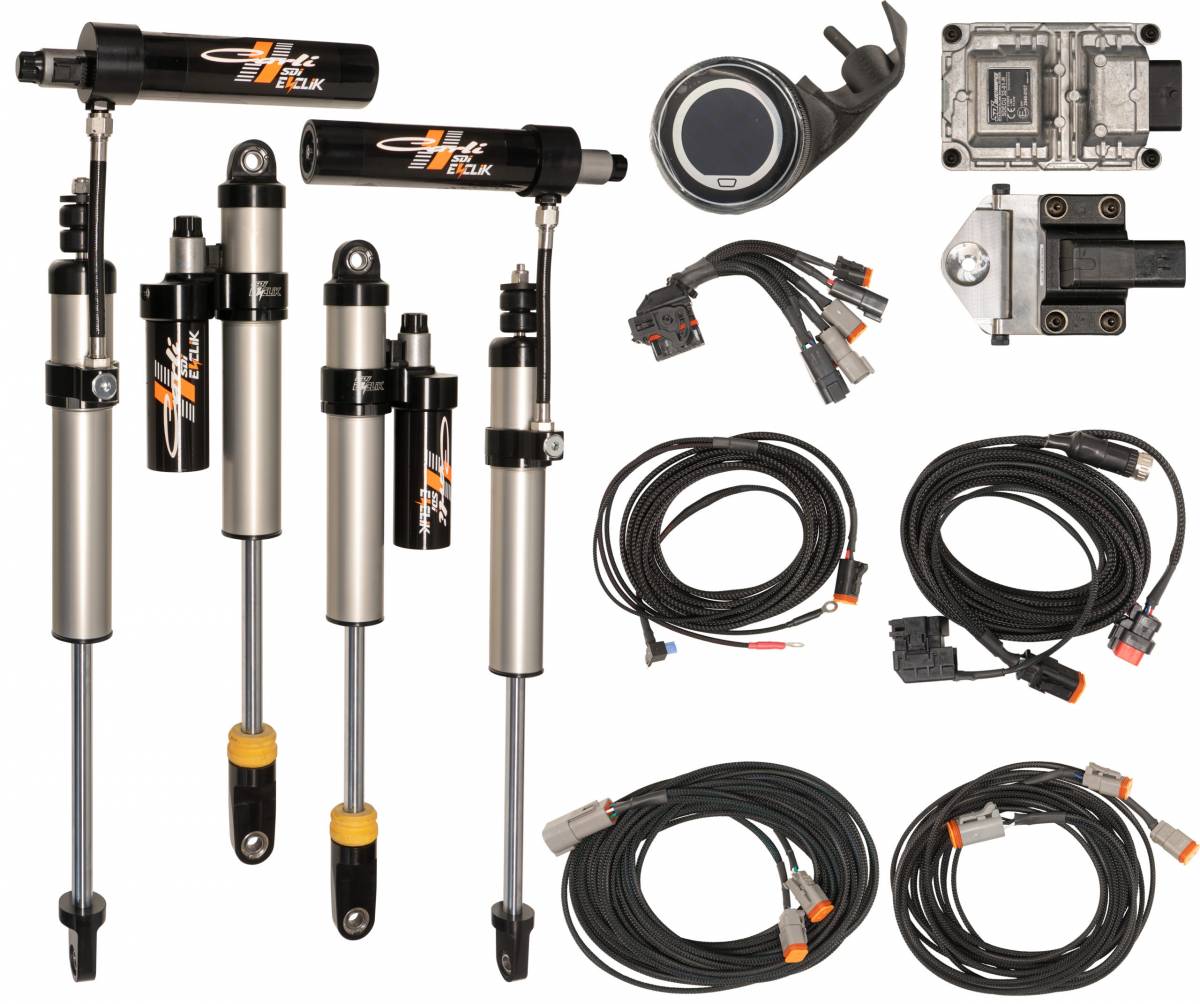

SKU: CS-FEV25SPKG-LVL-20-GAS
- Carli Custom Tuning & Drive Modes
- SDI 2.5", Remote-Reservoir Shocks Front and Rear
- Hard Anodized Aluminum Body/Reservoirs
- 17-4 Stainless Shock Shafts
- Includes Wiring, ECU, IMU & Touch Screen
- Includes Front Reservoir Mounts
- 9" Front Wheel Travel, 12" Rear
- Fitment: 2020+ F250/350 4x4, 7.3L Gas with 3.5" Carli Lift
- Fitment: 2020+ F250/350 TREMOR, 7.3L Gas with 1.5" Carli Lift
The future has arrived. The E-Venture system stays two steps ahead of the driver thanks to data input from a provided engine mounted sensor and factory sensors via the OBDII port. The in-cab mounted “Brain” of this system processes the information through a proprietary algorithm. Thanks to this cornucopia of electronic goodness, the E-Venture System reads and reacts the terrain 250 times per second. The resulting ride is the Best. The “best” is an absolute statement… On road? Off Road? Gravel? Rutted, pot-hole filled unmaintained lease roads? Yes… Yes to all of it. The systems takes the capability of a 2.5″ Shock well beyond the threshold we’ve come to expect!
Shocks
The shocks themselves are top-tier construction. Hard-anodized aluminum bodies and reservoirs pair with 17-4 Stainless Shock Shafts will stand the test of time and elements. Billet Rod ends house teflon lined bearings to ensure industry leading performance and longevity.
We left the following image super-high-res. Click on it, then right click, open in new tab and zoom away!
Electronic Control Unit
The “Brain” of the system is the ECU (Electronic Control Unit). The ECU Harness uses a large OEM-style connector with a rocker linkage to ensure it remains secured once fastened. We played with a few mounting locations in our R&D and the heat-cycling of our initial under-hood location proved detrimental to the ECU’s operable temperature range. We redesigned the harness to accommodate an in-cab mounting location (under the driver’s seat) and have had no overheating activity since.
