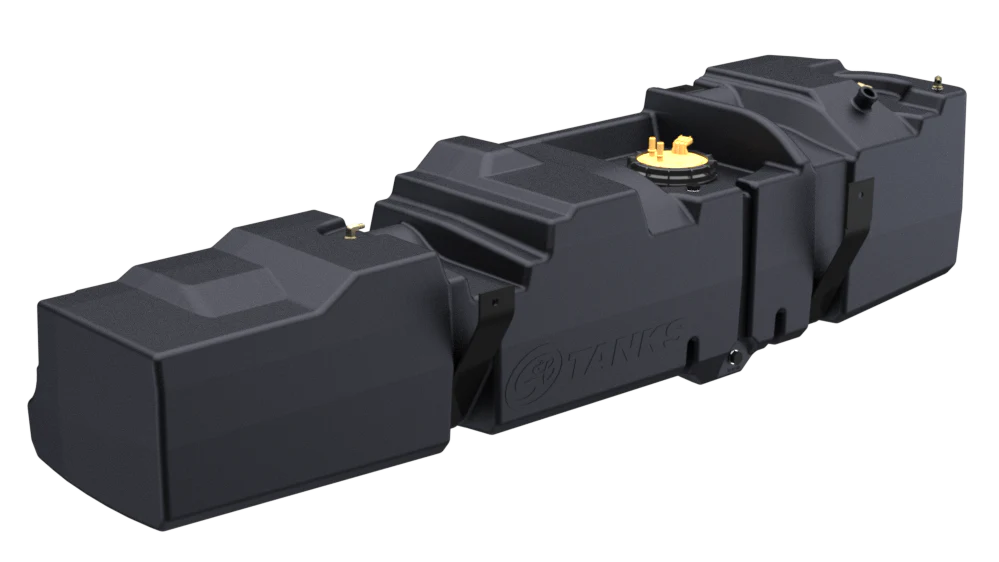

60 Gallon Replacement Fuel Tank for 2008-2010 Ford Powerstroke 6.4L Crew Cab Short Bed
60 Gallon Replacement Fuel Tank for 2008-2010 Ford Powerstroke 6.4L Crew Cab Short Bed
SKU:10-1028
Regular price
$1,249.00 USD
Regular price
Sale price
$1,249.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Product Description:
| Compatible with gooseneck and 5th wheel | Yes |
| Compatible with oe skid plate | No |
| Dimensions | 79" X 17.37" X 19.37" |
| Drain | Yes |
| Embedded fitting thread size | 1/2" NPT |
| Ground clearance compare to oe tank | 2.9" lower than stock. |
| Oem capacity | 29 Gallons |
| Sending unit | OE |
| Straps included | Yes |
| Sump | Yes |
| S&B Capacity (Approximate) | 60 gallons |
| Tank type | Midship |
| Transfer pump ready | Yes |
| Weight dry | 45lbs |
SAVE TIME. GO FURTHER. GET MORE OUT OF YOUR TRUCK.
The tank sits 3" below the OEM fuel tank shield. Install can be done in 2-3 hours and does not require any cutting, drilling or modification.
COMPATIBLE WITH THE OE SKID PLATE.
If you don't have a skid plate on your truck already, no problem! But if you do, unlike other competitor tanks, we designed the S&B Tank to allow you to reuse the factory skid plate. We also designed a smaller, factory style skid plate to cover the front of the larger S&B Tank.
AFTERMARKET LIFT PUMP
S&B Tanks work with OEM and aftermarket lift pumps. Aftermarket lift pumps(FASS & Airdog) provide more fuel to your diesel engine but face issues at a 1/4 tank fuel level. TheS&B Sending Unit allows you to drive to empty with your aftermarket lift pump. Completely plug and play, with no need to modify your OEM tank or sending unit.
This tank holds approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60 Gallon tank with have a greater fuel reserve.
S&B Sump Fittings/Drain Plug fittings are required when using our sump feed/return port or after drilling out the bottom port to use as a drain. Fittings are under related products.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
