Product Description:
Upgrade your Ram 2500’s performance without losing the factory functionality you rely on. Built specifically for factory rear air-ride Ram diesel trucks, the Carli Backcountry 2.5" Leveling System levels your stance, delivers remote-reservoir off-road performance, and preserves 100% of your factory payload and towing capacity.
Key Specifications
| Specification | Details |
| Front Lift | 2.5″ |
| Rear Lift | 1.0″ |
| Suspension Travel | 9.4″ Front / 9.4″ Rear |
| Shocks | Custom-Tuned Backcountry 2.0″ Remote Reservoir |
| Max Tire Fitment | 35″ x 12.5″ (18" Wheel Recommended) |
| Compatibility | 2014–2026 Ram 2500 4x4 Diesel (Air-Ride Only) |
Why Choose the Backcountry Leveling System?
-
Custom-Tuned Remote Reservoir Shocks: Features matched 2.0" Remote Reservoir shocks tuned in-house specifically for air-ride dynamics, delivering superior heat dissipation and ride quality on rough lease roads, farmlands, and highways.
-
Full Air-Ride Preservation: Keeps your stock rear air bags completely functional. Load capacity remains unchanged while rear bump-stop drops and custom spacers optimize overall shock travel.
-
Seamless Installation: Features heavy-duty, two-piece rear airbag spacers and billet aluminum sensor links engineered to lock together clean and effortless.
-
Ideal Stance & Axle Centering: Corrects factory rake with a 2.5" front lift and 1" rear spacer alignment, clearing up to 35" tires while keeping the front axle properly aligned.

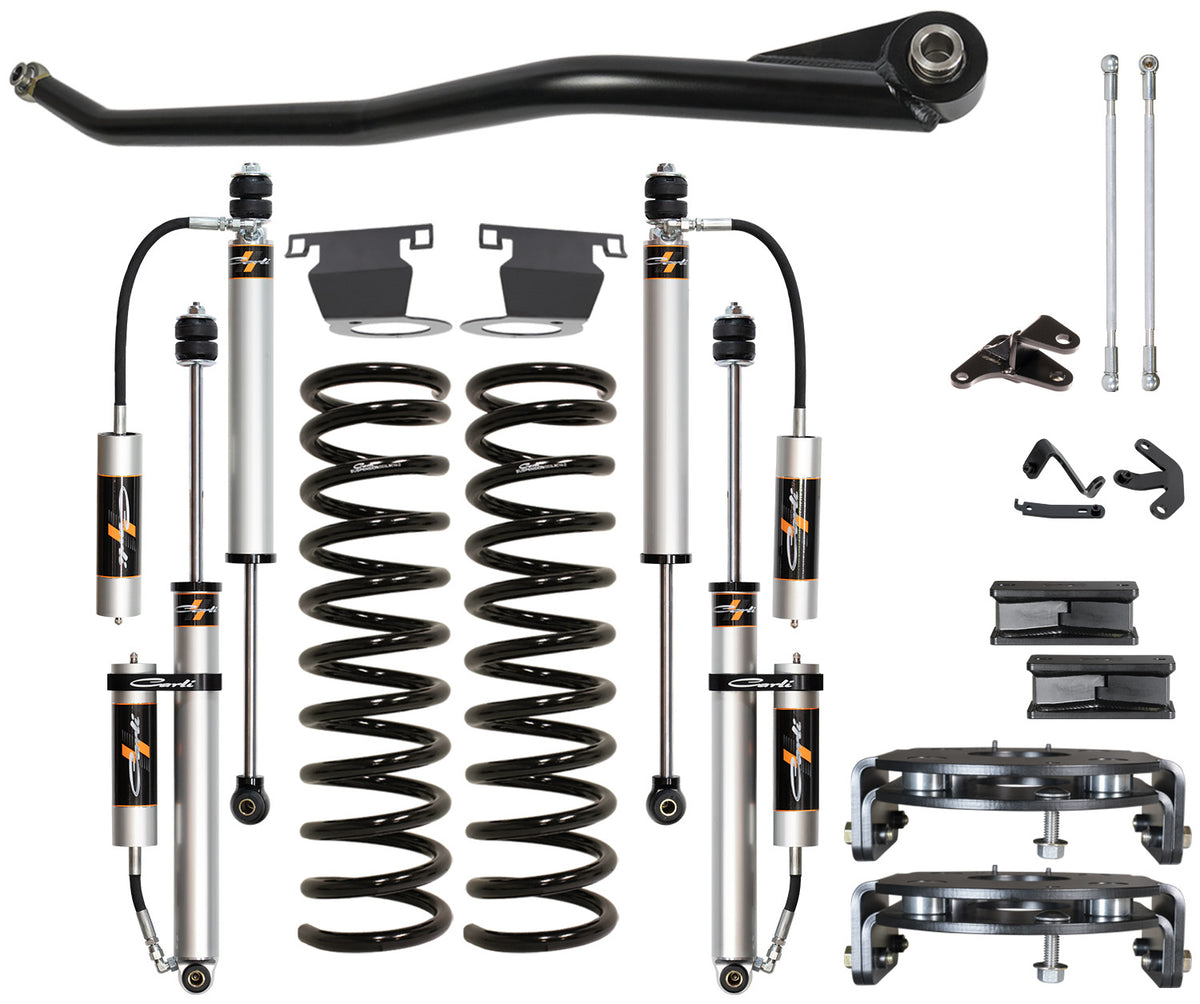

What’s Included in the Base Kit
-
CS-DLRC-14-LVL-D – Linear Rate Front Leveling Coils
-
CS-DLVLSPKG-CS20RR-D – Front & Rear Backcountry 2.0" Remote Reservoir Shocks (Air Ride Specific)
-
CS-DATB-1419 – RAM Adjustable Front Track Bar
-
CS-DAR-14-LVL-BLOCK – 2-Piece Airbag Leveling Spacers
-
CS-DRBD-1.875 – 1-7/8" Rear Bump Stop Drops
-
CS-DAR-14-LVL-LINK – Extended Rear Air Sensor Links
Popular Recommended Upgrades
-
Torsion Sway Bar Assembly: Unlocks front end compliance for a massive upgrade in street comfort and off-road articulation.
-
Extended Rear Track Bar Kit: Eliminates rear-end lateral "yaw" and instability while towing or cornering.
-
Low-Mount / High-Mount Steering Stabilizers: Dampens feedback and eliminates directional tire pull associated with aggressive off-road tires.
-
Fabricated Radius Arms: Heavy-duty 1/4" boxed steel construction equipped with quad-wrap limit straps to protect front shocks during aggressive use.
