Product Description:
Our most popular system, the Pintop kit boasts 2.5″, Remote Reservoir King Shocks. Designed and tuned in house for the customer looking for substantial on-road and off-road performance improvement. Customers can expect a softer ride with more control and bottom-out resistance than the Backcountry.
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|---|---|
| 1.0″ | 0″ | 10″ | 10.6″ | 2.5″ | 37″ x 12.5″ |
Dodge 2.75" Lift Pintop System, 2003-2013, 2500/3500 Hemi
Dodge 1" Lift Pintop System, 2005-2012 Power Wagon

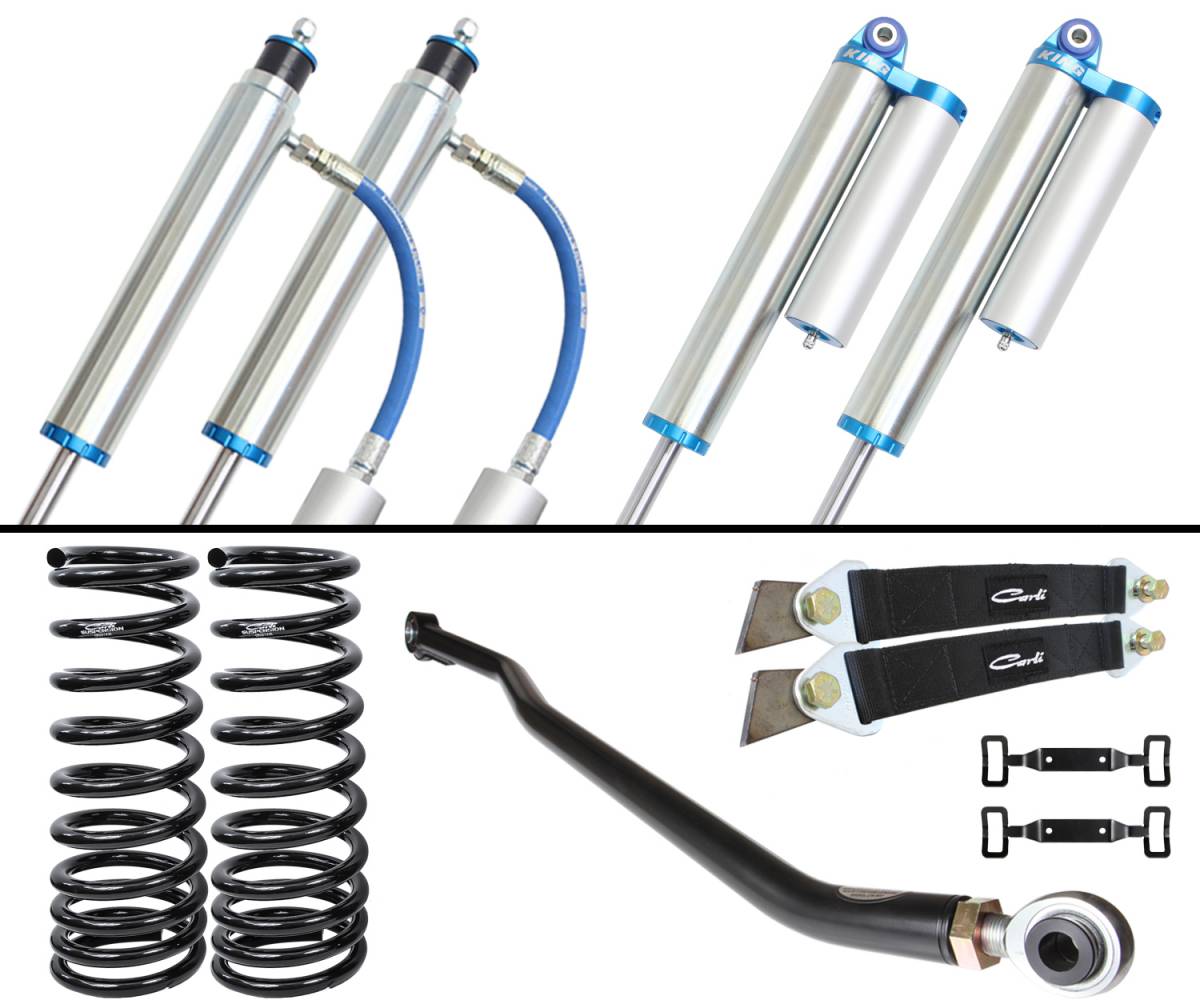

Base Kit Includes:
| CS-DMRC-03-H | Multi-Rate Coils |
| CS-DPT25SPKG-03-H | Carli Tuned King 2.5" Remote Reservoir Pintop Shock Package with Reservoir Mounts & Limit Straps, Stainless Shafts |
| CS-DATB-03 | Track Bar |
The Pintop is the Backcountry on steroids; take the description for the Backcountry and throw an exponent on it. This system is our most popular, all around suspension system. It was tuned and rides best with the Full Progressive Leaf Springs. The Pintop is a Jack-of-all-trades system from which every Ram owner would benefit. Raising the Ram platform then adding the 2.5” diameter shocks will support the argument that these trucks should come equipped with 2.5” shocks from the factory. The higher end systems will get you more off-road capability, yes, and even a bit more on-road. The premium paid for these systems, however, doesn’t compare to the on and off-road ride quality per dollar spent on the Pintop. For these reasons, it will likely remain our best seller for years to come.
In an effort to provide customers with the best product, we do not sell off-the-shelf King 2.5s. We designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; we then tuned the shocks around the custom pistons based on seat-of-the-pants feel. We round off ALL our 2.5” King shocks with oversized (7/8”) shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. All King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.
