CARLI SUSPENSION 2.5" COILOVER BYPASS SYSTEM 05-07 FORD
CARLI SUSPENSION 2.5" COILOVER BYPASS SYSTEM 05-07 FORD
SKU:CS-FLVL-CO25-BYP-05
Couldn't load pickup availability
Share
Product Description:

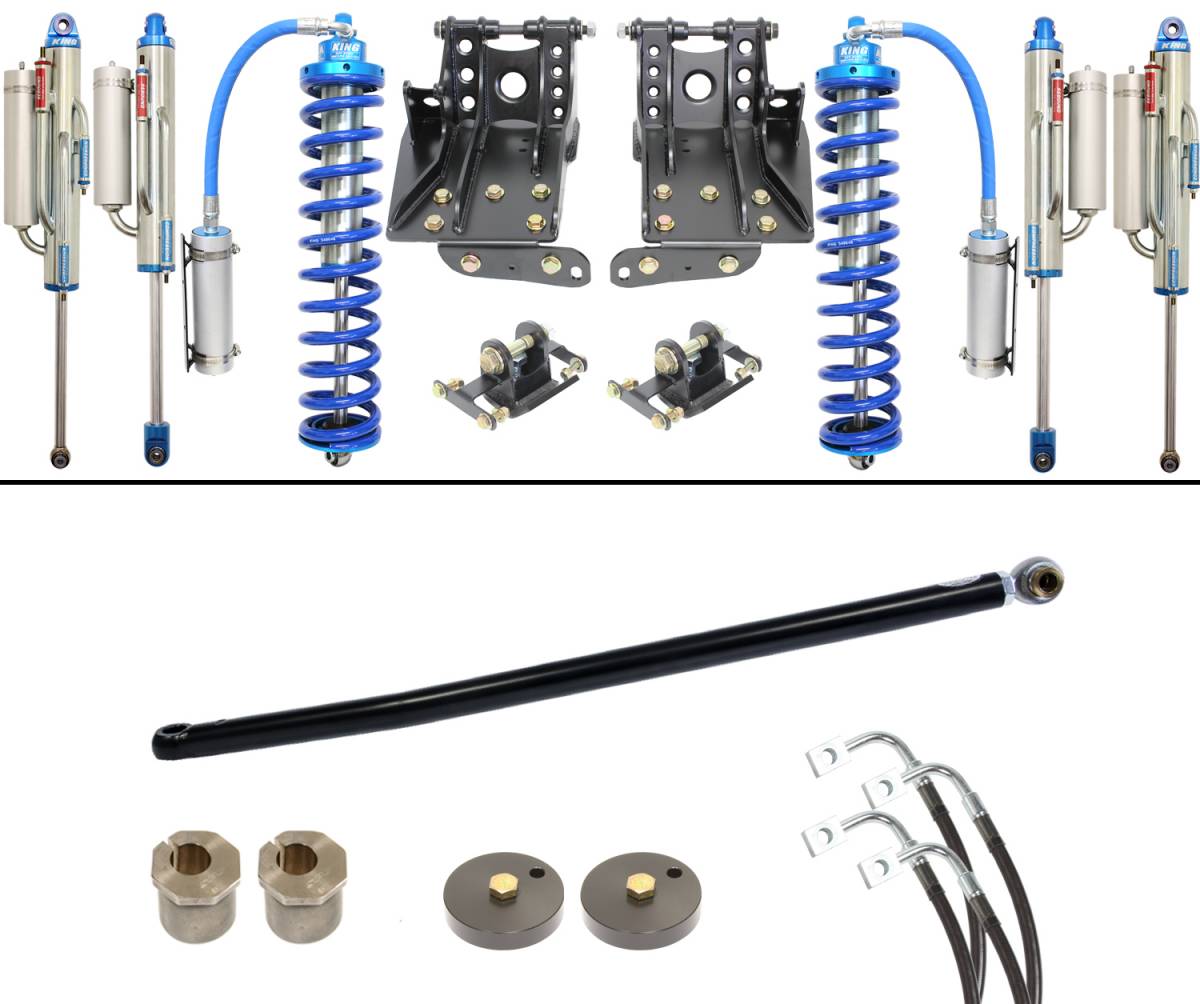

Base Kit Includes:
| CS-FCO25SPKG-BYP-LVL-05 | Carli Custom Tuned KING 2.5" Remote Reservoir Coilovers, 2-Tube Front and 3 Tube Rear Bypass Shocks, with Stainless Shafts & Reservoir Mounts |
| CS-FCOMKIT-05 | Upper and Lower Coilover Conversion Brackets and Hardware |
| CS-FORDBBL-05 | Brake Lines |
| CS-FCASTERSHIM-2.5 | 2° Caster Shims |
| CS-FPRB-05 | Track Bar |
| CS-FBDF-2.5 | Front Bump Drop Pucks |
| CS-SRM-2.5 | Short Reservoir Mounts |
Rear Leaf Spring Options
SKU: CS-FFSP-LVL-05
- Block eliminating, Full Progressive Spring Pack
- CLICK HERE FOR LOAD TESTING
- Includes new U-Bolts and Rear Bump Stop Drops
- Provides a 1/2", rear high stance to Carli Leveling Suspension Systems
- 37" Tire Fitment
- Fitment: 2005-2007 F250/350 4x4, 3.5"
- Requires front hanger relocation Includes Conversion Hardware
Radius Arm Options
SKU: CS-FARA-LVL-05
- 0.5°-2.5° of adjustable Caster correction
- 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance
- 12" Limit Straps Kit Included
- 17-4 Stainless Spherical Joint for longevity and bind free Cycling
- Fitment: 2005-22 Ford F250/350 4x4
- In Depth Look
- Click HERE to watch "Making of"
Low Mount Steering Stabilizer
SKU: CS-FLMSS-05
- Inside the Carli Stainless Stabilizer
- Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
- Includes Differential Guard and Clamp
- Combines with High-Mount Stabilizer for Opposing Setup
- Fitment: 2005-22 Ford F250/350 4x4
- Optimized for Carli 2.5"-5.5" Systems
