CARLI SUSPENSION 2.5" COILOVER BYPASS SYSTEM 08-10 FORD
CARLI SUSPENSION 2.5" COILOVER BYPASS SYSTEM 08-10 FORD
SKU:CS-FLVL-CO25-BYP-08
Regular price
$8,715.00 USD
Regular price
Sale price
$8,715.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Product Description:
A “Base Kit” SKU must be accompanied by the SKU of Leaf Spring option to form a complete system.
Providing height adjustability, dual front shocks and ultimate bottom-out resistance, the Coilover Bypass kit is the best option for the avid off-roader. 2.5″ Coilover and 2-Tube, 2.5″ bypasses adorn the front wheel well, while 3-Tube Rear Bypasses and Full Progressive Leaf Springs round off the rear. This system maintains great on-road manners and is the most off-road capable of our 2.5″ lift lineup.
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|---|---|
| 2.5″-3.5″ | 0-2″ | 8.0″ | 13″ | 2.5″ | 35″ x 12.5″ |

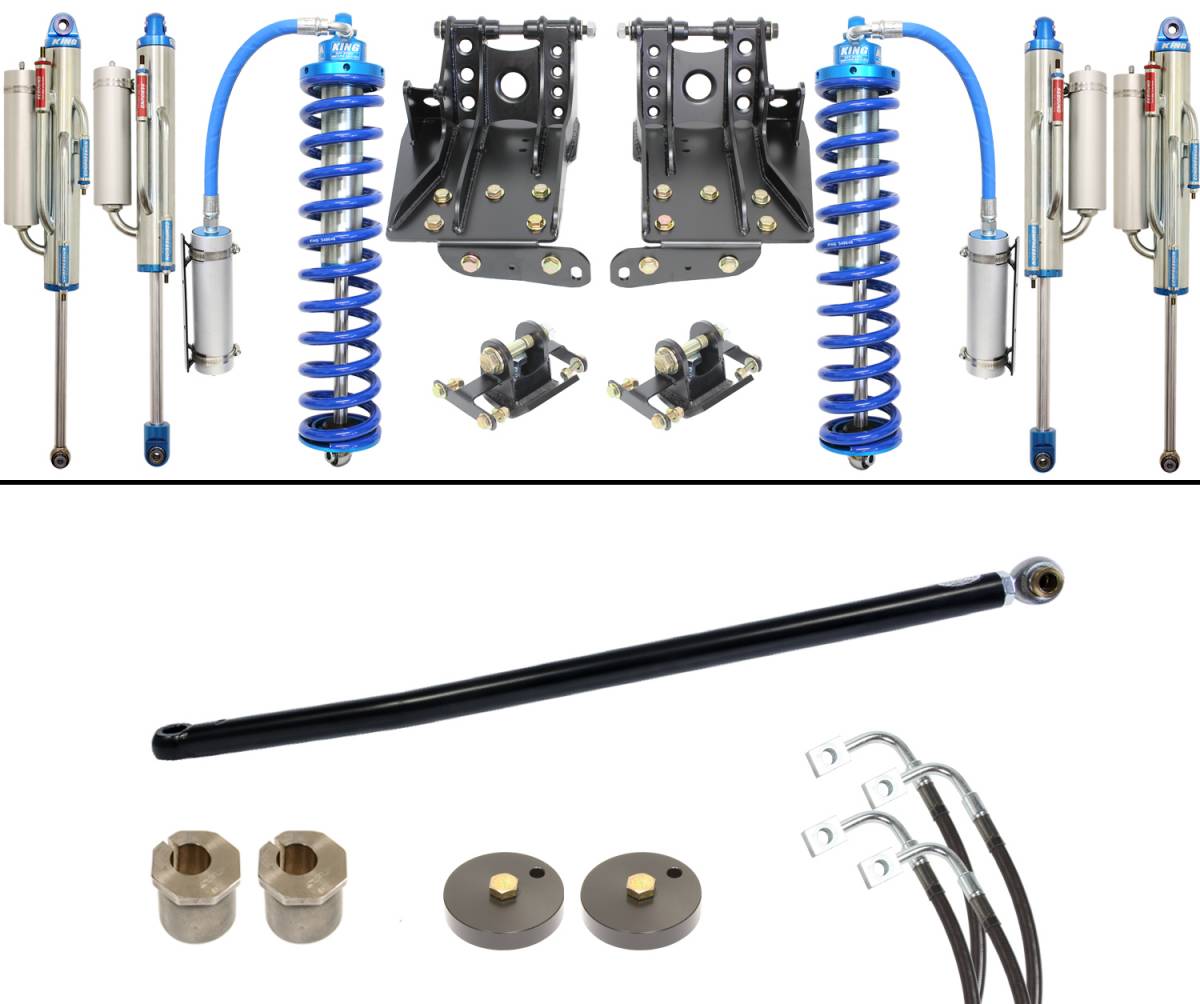

Base Kit Includes:
| CS-FCO25SPKG-BYP-LVL-05 | Carli Custom Tuned KING 2.5" Remote Reservoir Coilovers, 2-Tube Front and 3 Tube Rear Bypass Shocks, with Stainless Shafts & Reservoir Mounts |
| CS-FCOMKIT-08 | Upper and Lower Coilover Conversion Brackets and Hardware |
| CS-FORDBBL-08 | Brake Lines |
| CS-FCASTERSHIM-2.5 | 2° Caster Shims |
| CS-FPRB-05 | Track Bar |
| CS-FBDF-2.5 | Front Bump Drop Pucks |
| CS-SRM-2.5 | Short Reservoir Mounts |
$8,715.00
Rear Leaf Spring Options
Radius Arm Options
High Mount Steering Stabilizer
Low Mount Steering Stabilizer
