Product Description:
The same shocks and valving of the pintop but with the front spring and shock integrated. The Coilover system used Carli’s Fabricated Coilover Conversion plates as a display for the custom valved King 2.5″ Remote Reservoir Coilover. This system allows users height adjustability for after-market bumpers and winches while providing an awesome on and off-road ride.
Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
2.5-3.5″ 0-2″ 8.0″ 13″ 2.5″ 35″ x 12.5″
A “Base Kit” SKU must be accompanied by the SKU of a Leaf Spring option to form a complete system.
SKU: CS-FLVL-CO25-08
Ford Leveling Coilover 2.5 System, 2008-2010 Base Kit

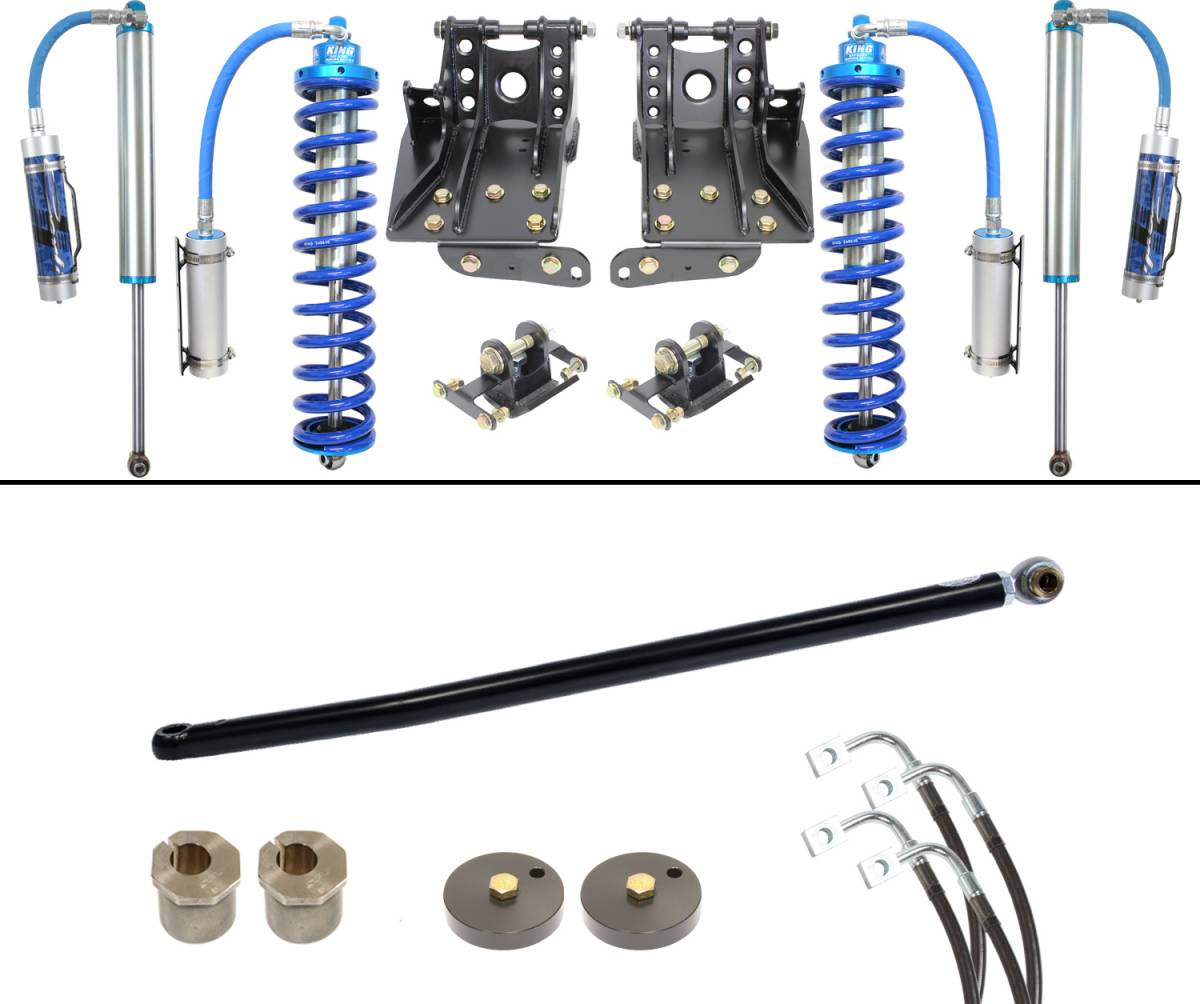

Base Kit Includes:
CS-FCO25SPKG-LVL-05 Carli Custom Tuned KING 2.5" Remote Reservoir Shocks, Coilover Front and Piggyback Rear, Stainless Shafts & Reservoir Mounts
CS-FCOMKIT-08 Upper and Lower Coilover Conversion Brackets and Hardware
CS-FORDBBL-08 Brake Lines
CS-FCASTERSHIM-2.5 2° Caster Shims
CS-FPRB-05 Track Bar
CS-FBDF-2.5 Front Bump Drop Pucks
