Product Description:

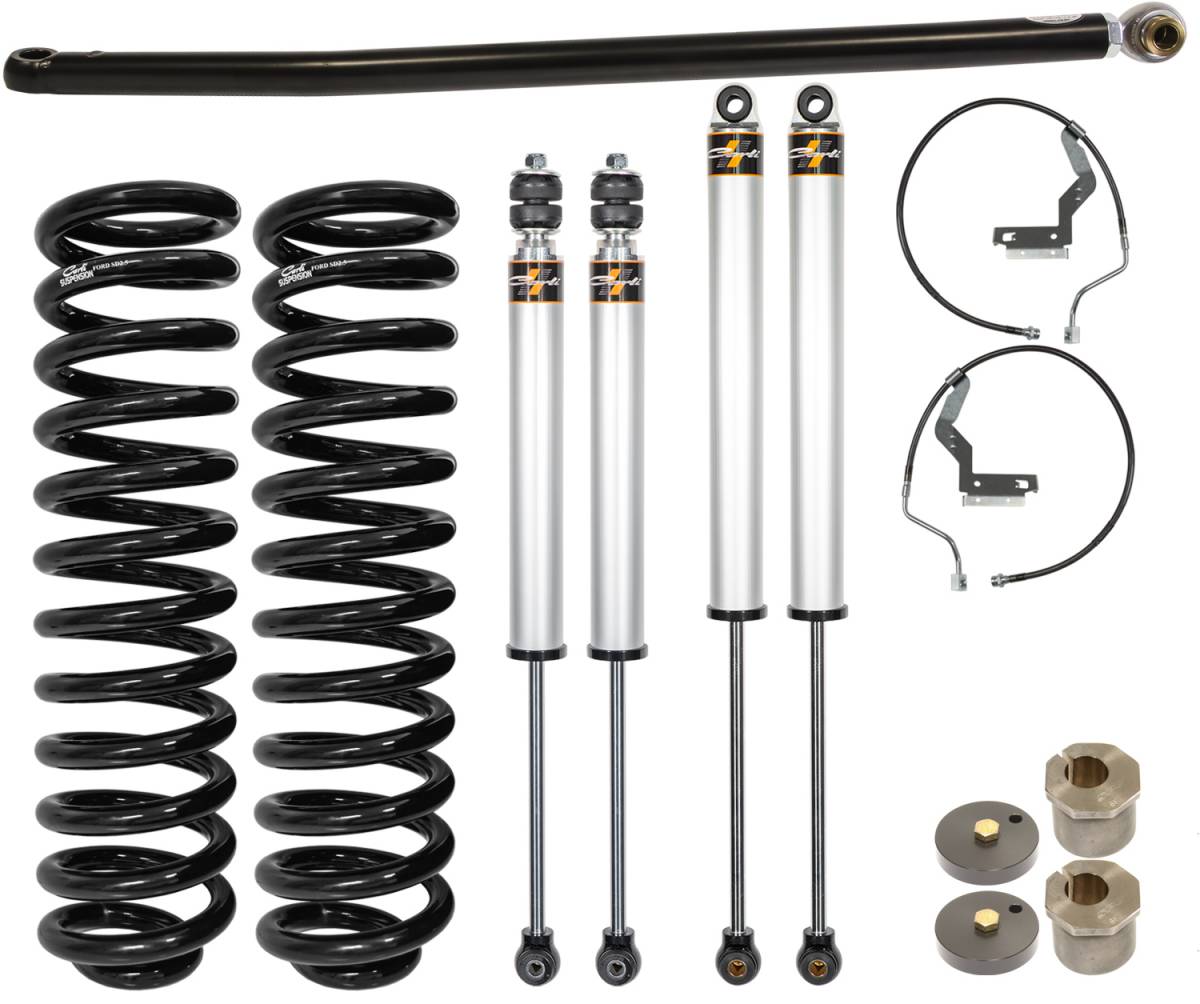

Base Kit Includes:
| CS-FLC-05 | Front Leveling Coils |
| AS-FLVLSPKG-CS20IFP-A | Carli SPEC 2.0" IFP Shocks, Front and Rear, FSP Valving |
| CS-FBDF05-25 | Front Bump Drops |
| CS-FORDBBL-11 | Brake Lines |
| CS-FCASTERSHIM-2.5 | 2° Caster Shims |
| CS-FPRB-05 | Track Bar |
Torsion Sway Bar
*Optional* - For everyone that’s not loaded to the GVWR daily, the Carli Torsion Sway Bar provides the final link lightening the last spring on the truck maximizing the ride quality of the Super Duty Platform. Keeping your factory bar limits comfort, removing it completely makes for questionable control when hauling or emergency maneuvering. After several revisions and years in development, the Carli Torsion Sway Bar Splits the Difference perfectly allowing a small amount of differentiation side to side before progressively engaging to add the needed control as leverage is applied. Rip corners in the dirt with surgical precision knowing there’s exactly enough rate to hold the body steady while cutting your line through the dirt. Hit the tarmac and enjoy the benefit of the lighter rate bar cruising around town with it’s on-road feel reminiscent of an independent front suspension – no more chassis reverberation on small bumps and let the suspension dance in the level cab while hitting off-camber driveways.
Rear Leaf Spring Selection
*REQUIRED* - Our "PAP" base kit pair to stock springs or Carli add-a-packs. The "FSP" system pairs to the Carli Full Leaf Springs. Optimal Ride Comfort and hauling capability will be the Carli FSP kit + Full Leaf Springs and an Airbag Supplement (contact your retailer for recommendations as we do not make airbags for the leveling height). For those not wanting to run airbags, the PAP kit combined with Stock leaf springs (or Carli Add-a-Packs) is the best option. This is far more limited in ride quality than the FSP counterpart but the tuning squeezes as much ride quality from the factory spring as possible with its massive capacity. See the long description below for more details.
Leaf Spring Shackle
*OPTIONAL* - Much of the jarring ride of the Super Duty rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.
Radius Arm Option
*OPTIONAL* - Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.
High Mount Steering Stabilizer
*OPTIONAL* - Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.
Low Mount Steering Stabilizer
*OPTIONAL* - Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.
