Product Description:
A “Base Kit” SKU must be accompanied by the SKU of a Leaf Spring option to form a complete system.
The most travel, softest on-road ride and the second most off-road capability combine to make this the ultimate utilitarian setup in our 2.5″ height range. This system options full leaf springs and Fabricated Radius arms are recommended.
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|---|---|
| 2.5″ | 0-2″ | 9.3″ | 13″ | 3.0″ | 35″ x 12.5″ |
Ford Leveling Coilover System, 2008-2010 Base Kit

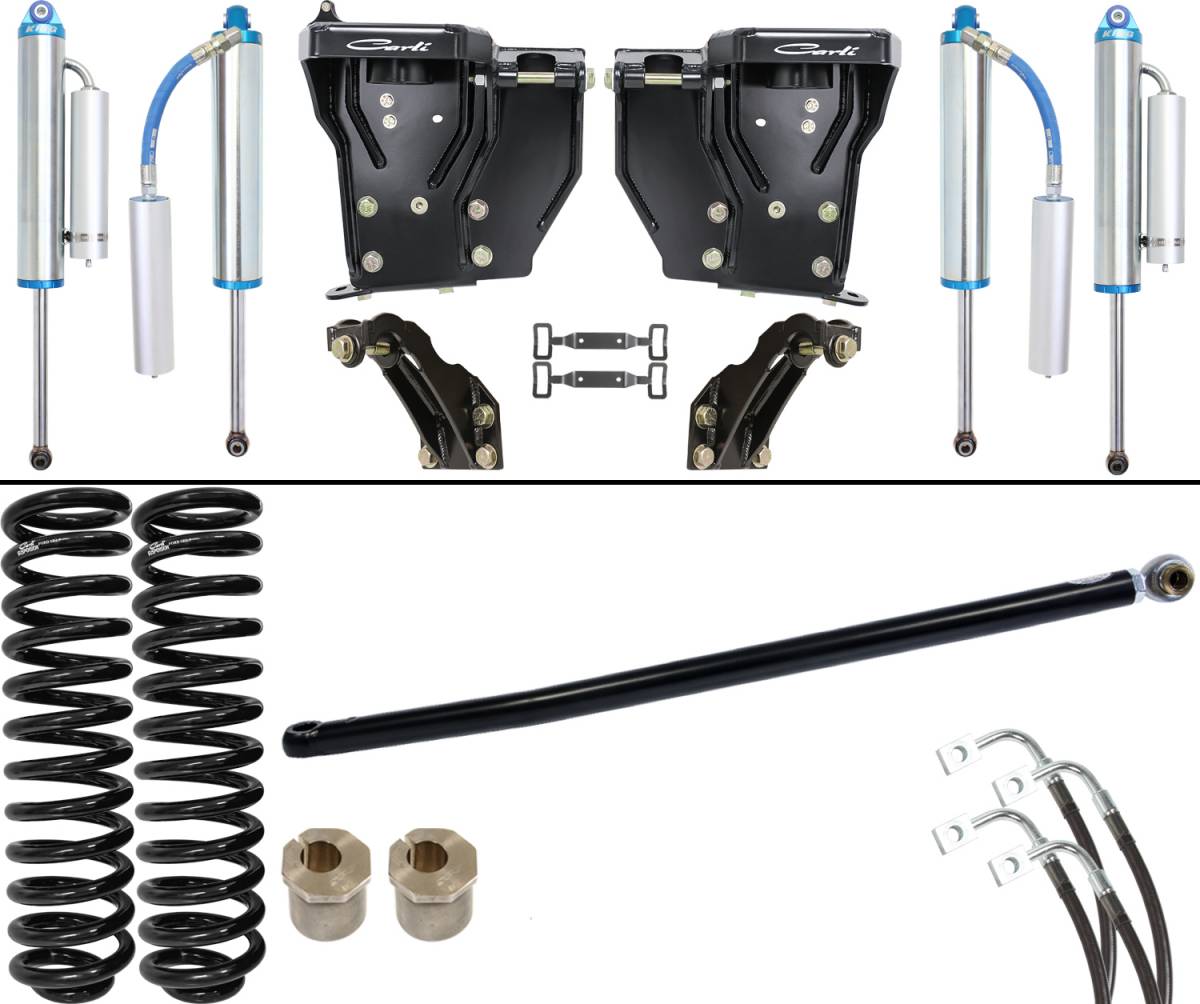

Base Kit Includes:
| CS-FLC-05 | Leveling Coils |
| CS-FD30SPKG-LVL-05 | Carli Custom Tuned KING 3.0" Remote Reservoir Shocks, Front and Rear with Stainless Shafts & Reservoir Mounts |
| CS-FFCB-08 | Fabricated Coil Buckets |
| CS-FRSM-08 | Fabricated Rear Shock Mounts |
| CS-FORDBBL-08 | Brake Lines |
| CS-FCASTERSHIM-2.5 | 2° Caster Shims |
| CS-FPRB-05 | Track Bar |
| CS-FBDF-2.5 | Front Bump Drop Pucks |
This is the true, Jack of all trades suspension system offering the most wheel travel of any Carli system. The Dominator rides better than any other system on the road while boasting off-road manners to rival the Coilover Bypass. No tubes to adjust or user-tunability in this system; we’ve done the hard work for you.
The truck will sit 2.5” higher in the front and have more wheel travel thanks to the taller, lighter rate coil springs that mount into the Fabricated Carli Spring Buckets. Stainless Brake Lines and an Adjustable Track Bar round off the front end geometry correction while Caster Shims improve on the stock handling. The rear is outfitted with a Full Progressive Spring Pack requiring no block to achieve proper ride height, thus travel is extended and wheel hop/axle wrap minimized at the cost of 15% less load capacity than a stock F250.
