Product Description:
The most travel, softest on-road ride and the second most off-road capability combine to make this the ultimate utilitarian setup in our 2.5″ height range. This system options full leaf springs and Fabricated Radius arms are recommended.
Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
2.5″ 0-2″ 9.3″ 13″ 3.0″ 35″ x 12.5″
A “Base Kit” SKU must be accompanied by the SKU of a Leaf Spring option to form a complete system.
SKU: CS-FLVL-D30-11
Ford Leveling Coilover System, 2011-2016 Base Kit

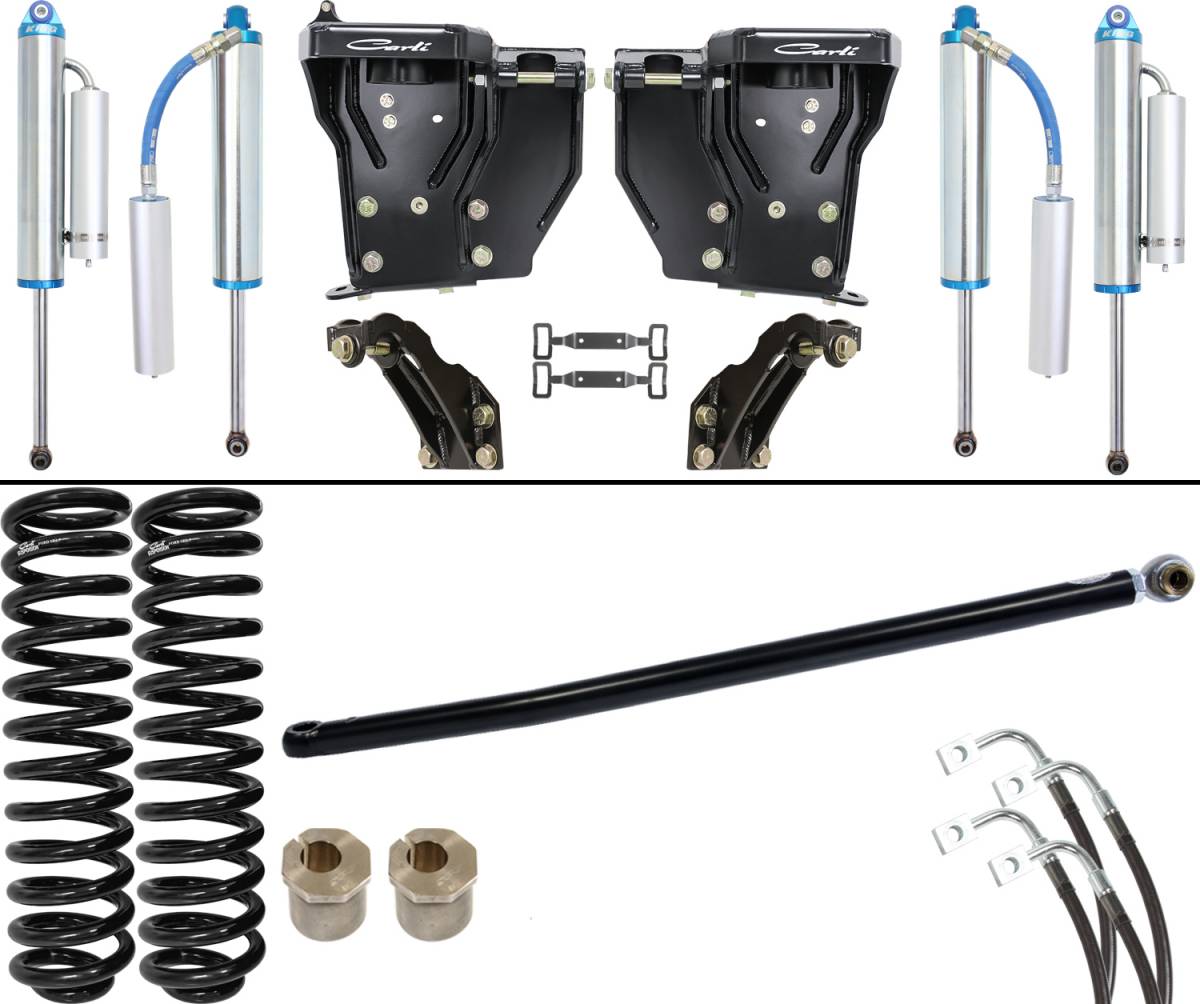

Base Kit Includes:
CS-FLC-05 Leveling Coils
CS-FD30SPKG-LVL-05 Carli Custom Tuned KING 3.0" Remote Reservoir Shocks, Front and Rear with Stainless Shafts & Reservoir Mounts
CS-FFCB-08 Fabricated Coil Buckets
CS-FRSM-08 Fabricated Rear Shock Mounts
CS-FORDBBL-11 Brake Lines
CS-FCASTERSHIM-2.5 2° Caster Shims
CS-FPRB-05 Track Bar
CS-FBDF-2.5 Front Bump Drop Pucks
