CARLI SUSPENSION 2.5" LEVELING BACKCOUNTRY SYSTEM 19+ RAM 3500 SRW ONLY

CARLI SUSPENSION 2.5" LEVELING BACKCOUNTRY SYSTEM 19+ RAM 3500 SRW ONLY

SKU:CS-DLVL-BC-CS-19-D

Regular price $2,735.00 USD
Regular price Sale price $2,735.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Description:

In 2019, Ram lowered the rear of the 3500 SRW - for this reason, we're now providing a 1" Billet Block and U-Bolts to fit the larger AAM 12" Axle (4.25" Axle Tubes). If you have a 19+ DRW, you do not need the 1" block to achieve a level stance - order the 13-18 option, instead.

SKU: CS-DLVL-BC-CS-19-D

Ram 2.5" Backcountry Leveling System, Diesel, Carli-SPEC

2019+ 3500 SRW
2019+ 3500 DRW, use other option (CS-DLVL-BC-CS-19-D) with NO BLOCK

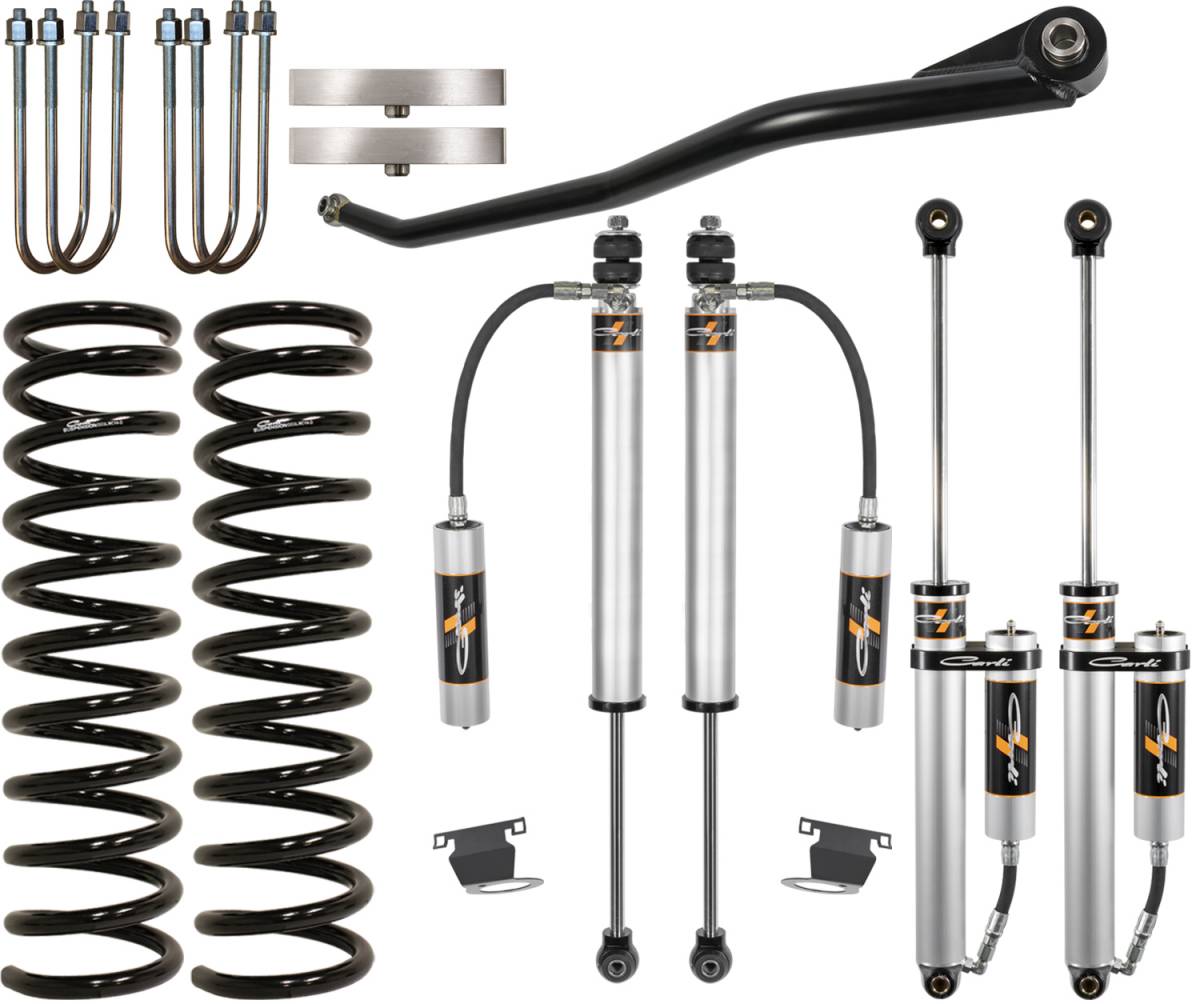

Base Kit Includes:
CS-DLRC-14-LVL-D Leveling Front Coils
CS-DLVLSPKG-CS20RR-B Carli SPEC 2.0" Remote Reservoir Shocks, Front and Rear with Res Mounts
CS-DATB-1419 Adjustable Track Bar
CS-DRBKIT-1-4.25 Billet Rear Lift Block & U-Bolts, 1" Lift

Does not work with rear auto-level air suspension.

This system is tuned for the 3500s equipped with rear leaf springs. It will install on the 3500 trucks equipped with the factory auto-leveling air assist but the tuning is NOT refined to the platform. We recommend you measure the truck as it often takes less than 2.5″ of front lift to level the Air-Assist Rams.
