Product Description:
| Front Lift | Rear Lift |
|---|---|
| 2″ | 0.5″ – 2″ |
| Front Travel | Rear Travel |
|---|---|
| 8.5″ | 11″ |
| Shocks | Tire Fitment |
|---|---|
| 3.0″ King Remote Reservoir | 37″ x 12.5″ |

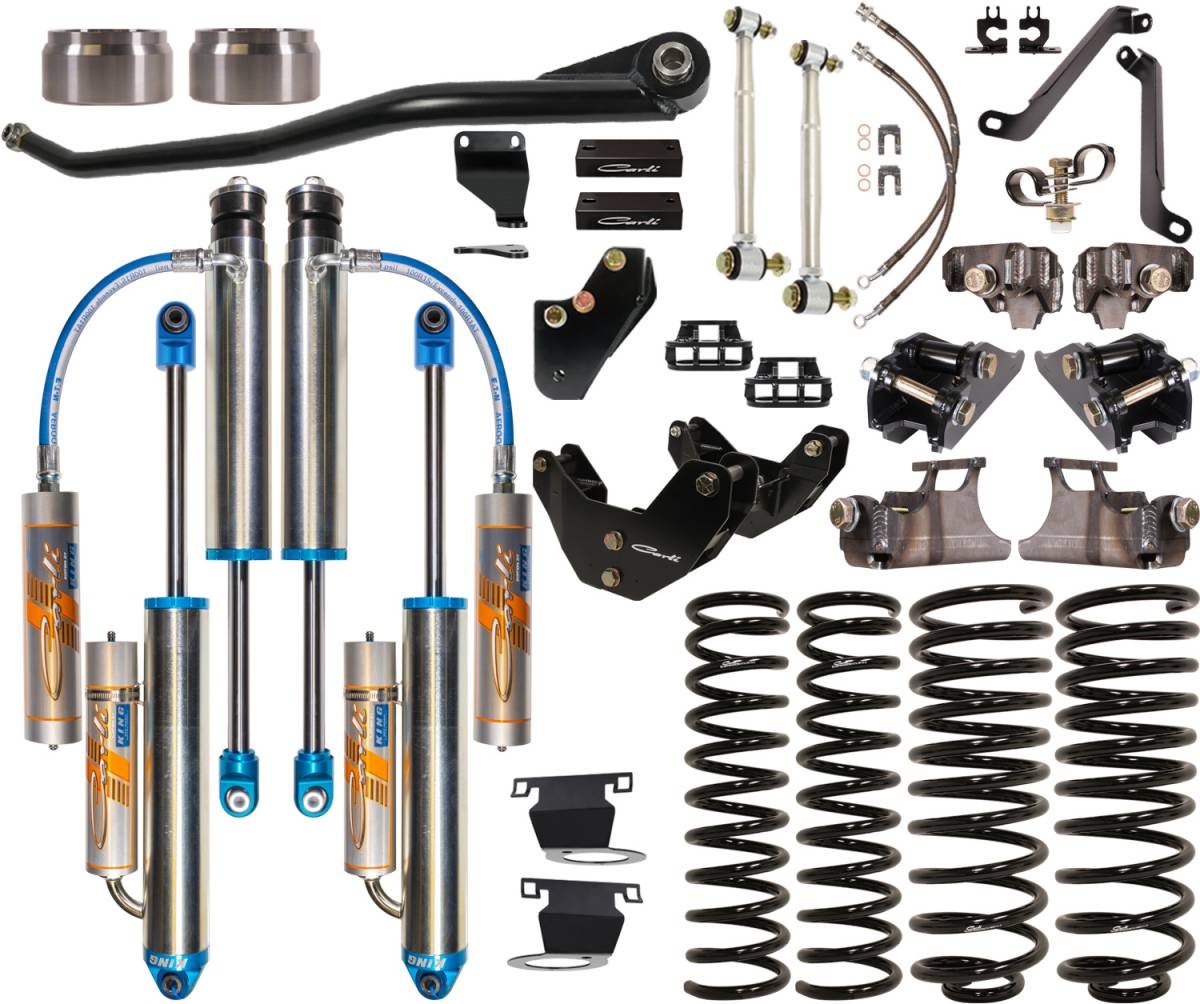

Ram Dominator System, 2014-18 Power Wagon & 2500 4x4 HEMI, R1 Coils
Base Kit Includes:
| CS-DEL-R-14 | Rear Sway Bar End Links |
| CS-DFBD-1 | Front Bump Drops |
| CS-DLRC-14-H | 3" Front Linear-Rate Coil Springs |
| CS-DMRC-14-R1 | Rear Multi-Rate Coil Springs,R1 |
| CS-DATB-1419 | Adjustable Track Bar with Stabilizer Bracket |
| CS-DRAD-14 | Radius Arm Drops |
| CS-DRBD-AL | Rear Bump Drops |
| CS-DPRBDROP-14-R | Rear Track Bar Drop |
| CS-DPWSKIDBLK-14 | Power Wagon Skid Plate Drop Bracket |
| CS-DD30SPKG-14-H | Carli Tuned King 3.0" Remote Reservoir Shock Package with Stainless Shafts, Reservoir Mounts, Brake Line Kit, Coil Isolator Supports, Front Lower Shock Mounts, Rear Upper and Lower Shocks Mounts, Bed Supports and E-Brake Relocation Bracket |
Sway Bar Selection
*OPTIONAL* - The Factory Sway Bar Disconnect with which the Power Wagons are equipped works great for those wanting the two ends of the spectrum, rigid or flexy. For those wanting to land in the middle of the spectrum between these two end points, Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension when compared to the locked, factory sway bar. The Carli Sway Bar allows nearly bind-free articulation in low-speed applications; when things heat up, it allows the Carli Shocks and springs to breath while engaging progressively to provide control in high-speed cornering situations.
Fabricated Radius Arms
*OPTIONAL* - The Factory Power Wagon Articulink Arms ride fantastic and will out-flex any option our there. Our radius arms eliminate the second pivot point to prioritize control in high-speed off-road situations. They're great if you're struggling with front wheel hop, are constantly loaded or feel the front end of the Power Wagon sways too much. Basically, anyone that's not rock crawling their Wagon. These arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.
Low Mount Steering Stabilizer
*OPTIONAL* - Bolt in steering stabilizer (factory location). Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.
Front Differential Guard
*OPTIONAL* - Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.
Lifetime Ball Joints
*OPTIONAL* - Do your ball joints once, grease every oil change and forget they exist...
