CARLI SUSPENSION 3" BACKCOUNTRY SYSTEM 03-09 RAM 2500/3500
CARLI SUSPENSION 3" BACKCOUNTRY SYSTEM 03-09 RAM 2500/3500
SKU:CS-D3-BC-CS-03-D
Couldn't load pickup availability
Share
Product Description:
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|---|---|
| 3.0″ | 1″ – 2″ | 10.5″ | 12.3″ | 2.0″ | 37″ x 12.5″ |
A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar and Leaf Spring option to form a complete system.

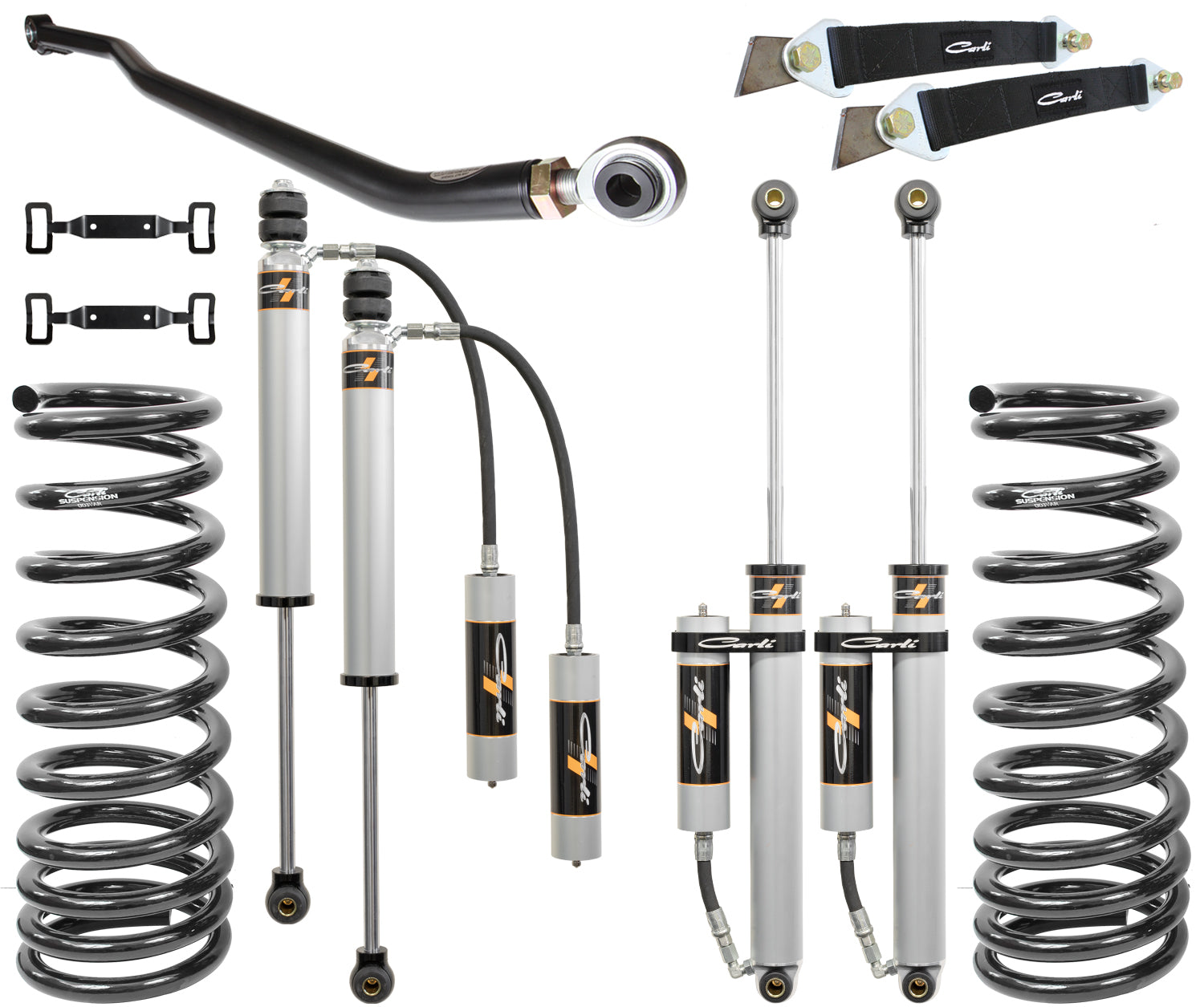

Dodge Backcountry 2.0 System, Diesel, 2003-2009 Base Kit
Base Kit Includes:
| CS-DMRC-03-D | Multi-Rate Coils |
| CS-D3SPKG-CS20RR-D | Carli-SPEC 2.0" Remote Reservoir Shocks, Front and Rear, Reservoir Mounts & Limit Straps |
| CS-DATB-03 | Track Bar |
Sway Bar Options
*REQUIRED* - With the lift provided by the coils and the extended travel of the shocks, it's imperative the front sway bar be addressed. For this, we offer two options. The Carli Sway Bar End links provide a longer link (utilizing the factory upper pillow bushing) allowing for reuse of the factory sway bar. This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Links is only recommended for customers requiring the stiff rate of the factory sway bar - i.e.: those with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.
Rear Leaf Spring Options
*REQUIRED* - The Backcountry System has been optimized for use with the Full Progressive Leaf Springs. This system is also compatible with the Progressive Add-a-Packs but there will be a notable ride quality difference on and off-road. Selecting "NO Rear Leaf Spring Selection" will result in an unknown ride quality and height result as all Carli Systems are optimized to either the Add-a-Pack or Progressive Leaf Springs. The HD Options is ONLY for those running a CONSTANT 1,000lbs in the bed at all times.
Leaf Spring Shackle
Much of the jarring ride of the leaf-spring rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.
Long Travel Airbag Option
*OPTIONAL* - Restores Factory capacity to reduced rate Carli Leaf Springs. Provides the best of both ends of the spectrum - ride on Carli's soft-rate leaf springs when unloaded then air the bags up to level the chassis and support your load!
Control Arm Options
*OPTIONAL* - We offer two sets of control arms, the standard extended control arms will ensure your axle is pushed forward to the new centered position in the wheel-well following the lift. These allow for up to a 35" tire. The BIllet Control Arms do the same to center the wheel while the high-clearance profile allows for fitment of a 37" x 13.5" tire on a 9" wide wheel with a +18mm offset.
Steering Stabilizer Options
*OPTIONAL* - when adding oversized tires, it's always recommended to upgrade one's stabilizers. We recommend the low-mount for those running 35s and an opposing setup for those with 37s.
