Product Description:

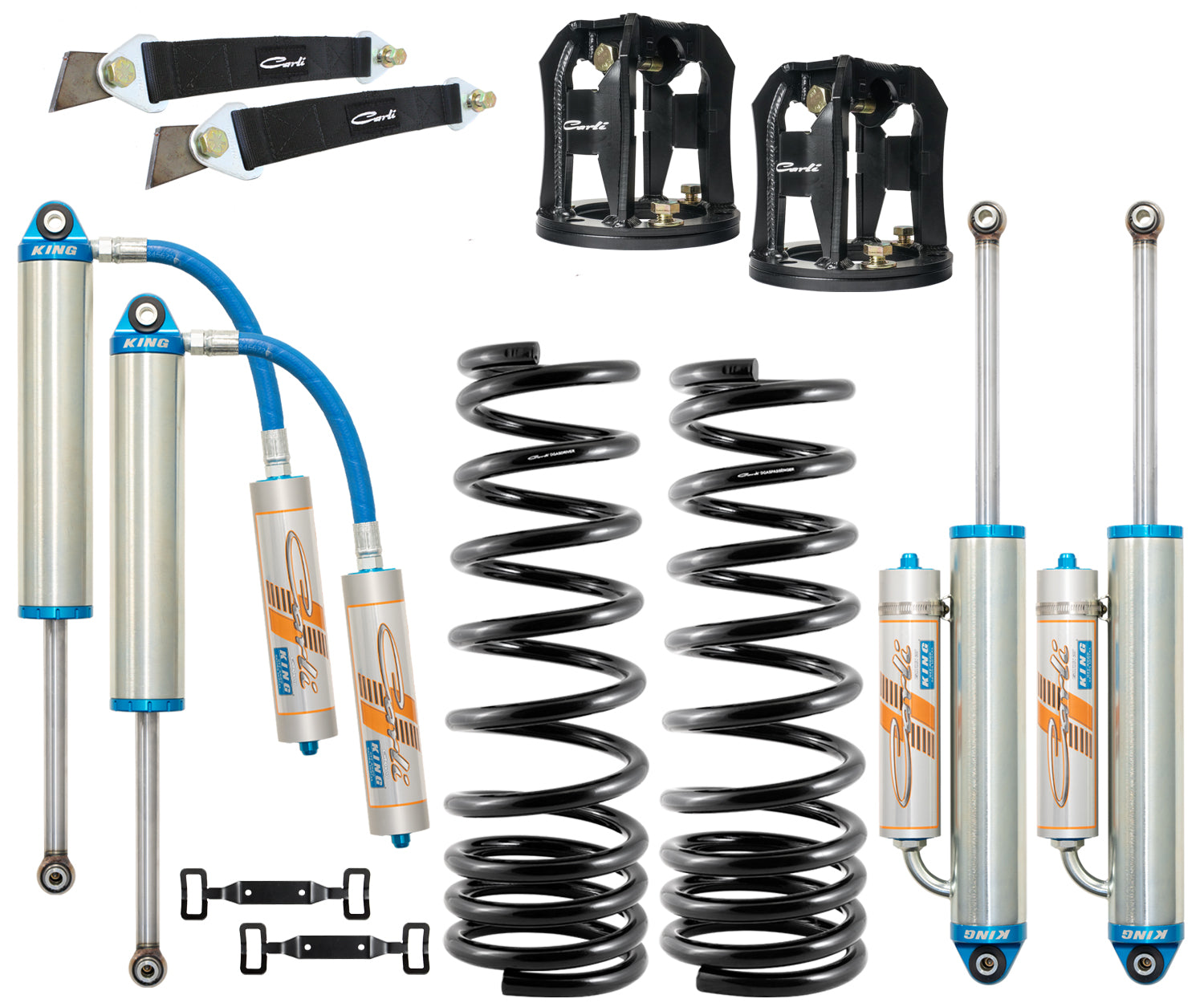

Base Kit Includes:
| CS-DMRC-03-H | Multi-Rate Coils |
| CS-DD30SPKG-94 | Carli Tuned King 3.0 Remote Reservoir Shocks, Stainless Shafts, Short Reservoir Mounts, Limit Straps |
| CS-DFST475 | Fabricated Shock Tower |
| CS-D30GUSSET | Rear Shock Gusset Kit |
| CS-HOLESAWKIT-4.5 | 4" Hole Saw and Arbor |
Sway Bar Options
*REQUIRED* - When pairing added down-travel with the taller ride height, the position of the factory sway bar will need to be altered. For this, we offer extended Sway Bar End Links equipped with ½” FK Rod-Ends and in-house machined 17-4 stainless bodies that are extended over stock to reset the sway bar engagement point. Factory pillow-bushings are re-used to assemble the sway bar to the lengthened link.
Rear Leaf Options
*OPTIONAL* - The Progressive Add-A-Pack can be optioned to replace the unyielding factory overload spring (bottom-most thick leaf in the factory pack) to increase comfort, traction & predictability. This add-a-pack will maintain the factory block.
Control Arms
*OPTIONAL* - We offer two sets of control arms, identical in construction but differing in bolt size to accommodate the year split in the 2nd Gens. Pushing the axle to the new, centered position in the wheel-well following the lift - these allow for up to a 35" tire with minor trimming. +18mm Offset is recommended for optimal tire fitment
