Product Description:
This System Requires the Torsion Sway Bar and Full Progressive Leaf Springs to properly function.
2003-07 Rams MUST convert to factory “T-Style” steering.
Dodge Unchained 3.5 System, Diesel, 2003-2009 Base Kit
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|---|---|
| 3.0″ – 3.5″ | 1.5″ – 2″ | 11.25″ | 13″ | 3.5″ & 3.0″ Bypass | 37″ x 12.5″ |
The Unchained is a purpose built kit. 3.5″ Front Kings and 4-Tube Bypass rear 3.0″ shocks are optioned with a Torsion Sway Bar, High Clearance Control Arms and Full Leafs in the rear for unsurpassed off-road capability from a bolt-on suspension system. A roll cage should be considered at this level of suspension.

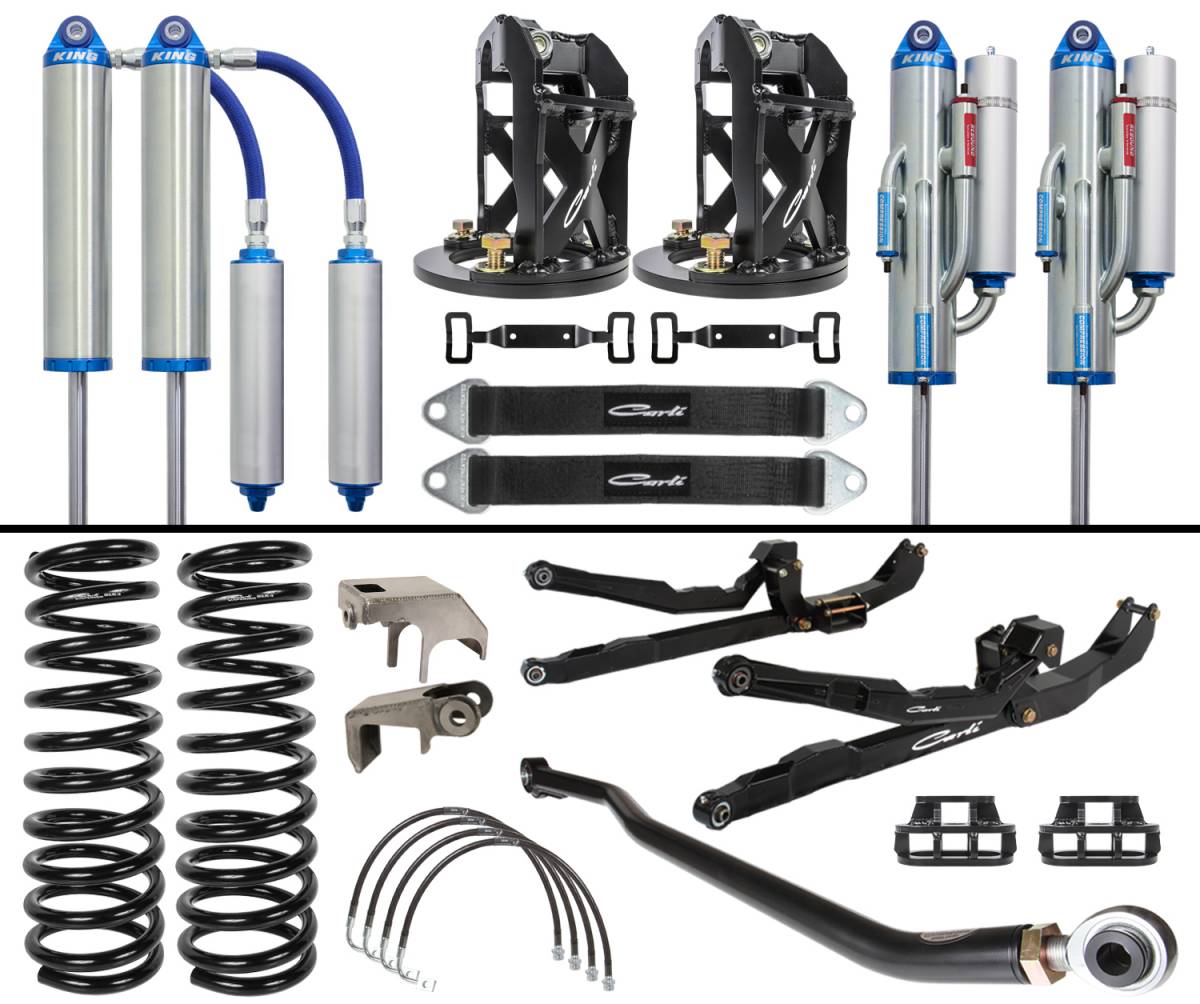

Base Kit Includes:
| CS-DLRC-10-D | Linear-Rate Coils |
| CS-DLA3-03 | Long Arm System |
| CS-DATB-03 | Track Bar |
| CS-DUC35SPKG-03-D-LA | Unchained 3.5 Shocks, Stainless Shafts, Limit Straps, Reservoir Mounts |
| CS-DFST625 | Fabricated Shock Tower |
| CS-D30GUSSET | Rear Gusset Kit |
| CS-HOLESAWKIT-4.5 | 4" Hole Saw and Arbor |
| CS-DRSMKIT-03 | Rear Shock Mounts |
| CS-DFBD-1 | Front Bump Drop 1" |
| CS-D3BBL-03 | Braided Brake Lines |
The Details: With the release of the 3″ Long Arm, comes the Long-Arm equipped Systems. The decision has been made to discontinue the older, short-arm variation of the Unchained 3.5″ in favor of a Long-Arm equipped, extended travel version at which you’re looking now. This system requires customers to cut off the factory control arm mounts in favor of the Carli Drop Brackets to house our internally gusseted, fully fabricated Long Arm System. These arms are over 50% longer than the factory arms boasting 3/16” cold-rolled steel construction, internal gusseting, extended travel capability, more linear travel stroke and a better ride quality given their length and position parallel to the ground.
To take advantage of the Long Arm’s capability, we’ve included a 6.25” tall, slide over-design shock tower to ease installation and accommodate the longer (11.25” Travel) shocks, included 1” front bump stop drops and limit straps to ensure customers can dish repetitive beatings to their King 3.5” shocks with confidence of full & safe utilization of the shock’s travel. In a short arm truck, it’s not uncommon to see 7” of up-travel (metal to metal) and 3” of down-travel. The combination of the long arm system’s 6.25” tall tower and 1” bump drop allows for our 11.25” travel shock and shifts the front axle’s operating range down 1”; the result, 2.25” more down-travel when compared to a short-arm system only sacrificing 1” of up-travel. This is a far more balanced setup spec’d with 6” of up travel and 5.25” of down-travel ensuring the front end maintains contact over rough terrain. If you’re looking for a great daily driver to beat up on the weekends, grab a Performance 2.5”; if you’re looking for a no-compromise off-road system to push the envelope of which the Ram platform is considered capable, this is it.
