Product Description:
This System Requires the Torsion Sway Bar and Full Progressive Leaf Springs to properly function.
The Unchained is a purpose built kit featuring Carli’s Fabricated Long Arm System, Custom Long-Travel 3.5″ King Shocks in the front and 3.0″, 4-Tube Bypass rear shocks are paired with a Torsion Sway Bar and Full Leaf Springs for unsurpassed off-road capability from a bolt-on suspension system. A roll cage should be considered at this level of suspension.

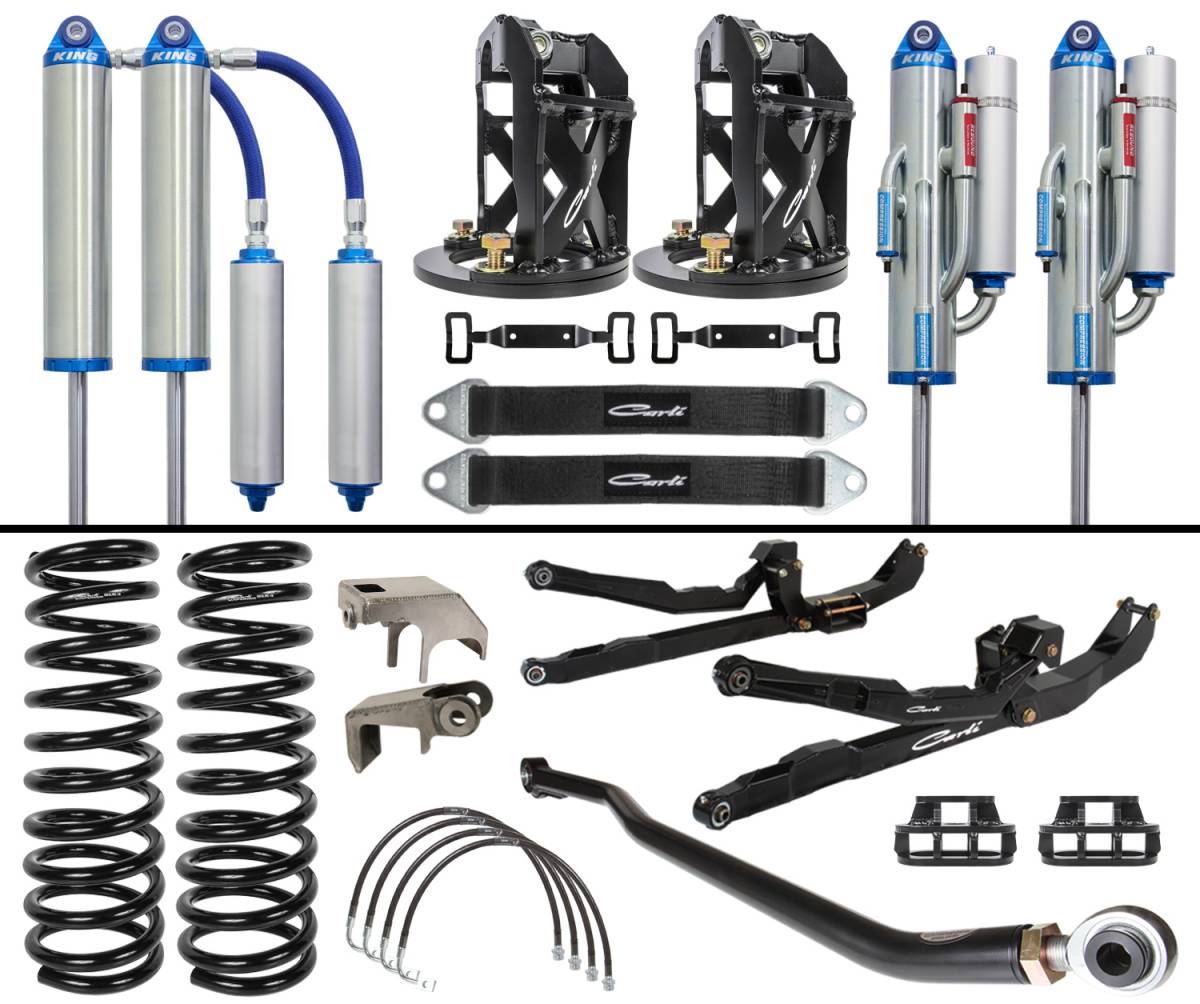

Base Kit Includes:
| CS-DLRC-10-D | Linear-Rate Coils |
| CS-DLA3-10 | Long Arm System |
| CS-DATB-03 | Track Bar |
| CS-DUC35SPKG-03-D-LA | Unchained 3.5 Shocks, Stainless Shafts, Limit Straps, Reservoir Mounts |
| CS-DFST625 | Fabricated Shock Tower |
| CS-DRSMKIT-03 | Rear Shock Mounts |
| CS-DFBD-1 | Front Bump Drop 1" |
| CS-D3BBL-03 | Braided Brake Lines |
| CS-D30GUSSET | Rear Gusset Kit |
| CS-HOLESAWKIT-4.5 | 4" Hole Saw and Arbor |
The Details: With the release of the 3″ Long Arm, comes the Long-Arm equipped Systems. The decision has been made to discontinue the older, short-arm variation of the UnChained 3.5″ in favor of a Long-Arm equipped, extended travel version at which you’re looking now. This system requires customers to cut off the factory control arm mounts in favor of the Carli Drop Brackets to house our internally gusseted, fully fabricated Long Arm System. These arms are over 50% longer than the factory arms boasting 3/16” cold-rolled steel construction, internal gusseting, extended travel capability, more linear travel stroke and a better ride quality given their length and position parallel to the ground.
