Product Description:
Providing height adjustability, dual front shocks and ultimate bottom-out resistance, the Coilover Bypass kit is the best option for the avid off-roader. 2.5″ Coilover and 2-Tube, 2.5″ bypasses adorn the front wheel well, while 3-Tube Rear Bypasses and Full Progressive Leaf Springs round off the rear. This system maintains great on-road manners and is the most off-road capable of our 4.5″ lift lineup.
Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
4.5″ 0-3.5″ 10″ 13″ 2.5″ 37″ x 13.5″
A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar and Leaf Spring option to form a complete system.
SKU: CS-F45-CO25-BYP-08
Ford 4.5" Coilover 2.5 Bypass System, 2008-2010 Base Kit

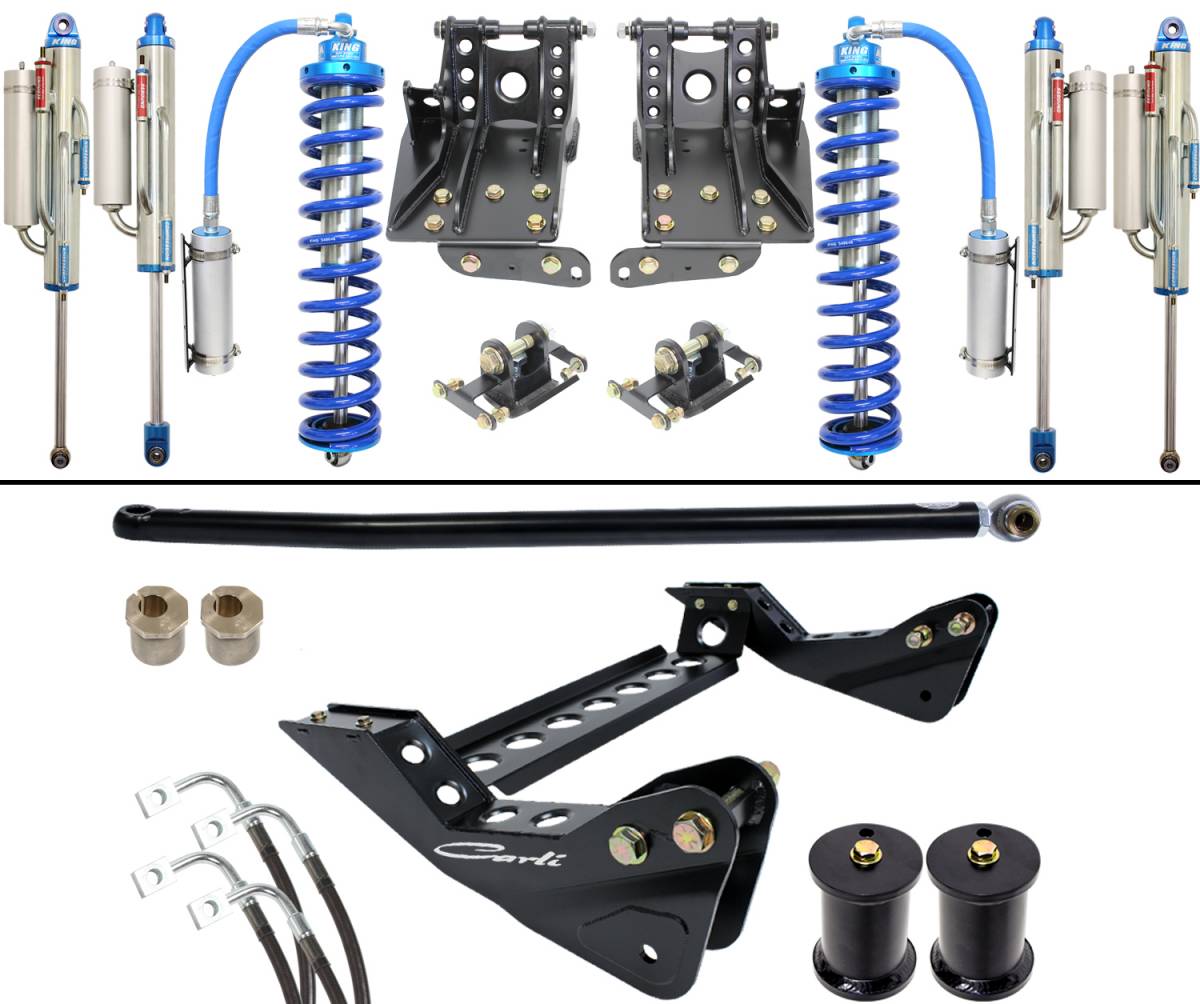

Base Kit Includes:
CS-FCO25SPKG-BYP-45-05 Carli Custom Tuned KING 2.5" Remote Reservoir Coilovers, 2-Tube Front and 4 Tube Rear Bypass Shocks, with Stainless Shafts & Reservoir Mounts
CS-FCOMKIT-08 Coilover Mounts
CS-FORDBBL-08 Brake Lines
CS-FRAD-05 Radius Arm Drops
CS-FBDF-05-4.5 Bump Stop Drops
CS-FCASTERSHIM-4.5 1° Caster Shims
CS-FPRB-05 Track Bar
