CARLI SUSPENSION 6" DOMINATOR SYSTEM 10-11 RAM 2500/3500

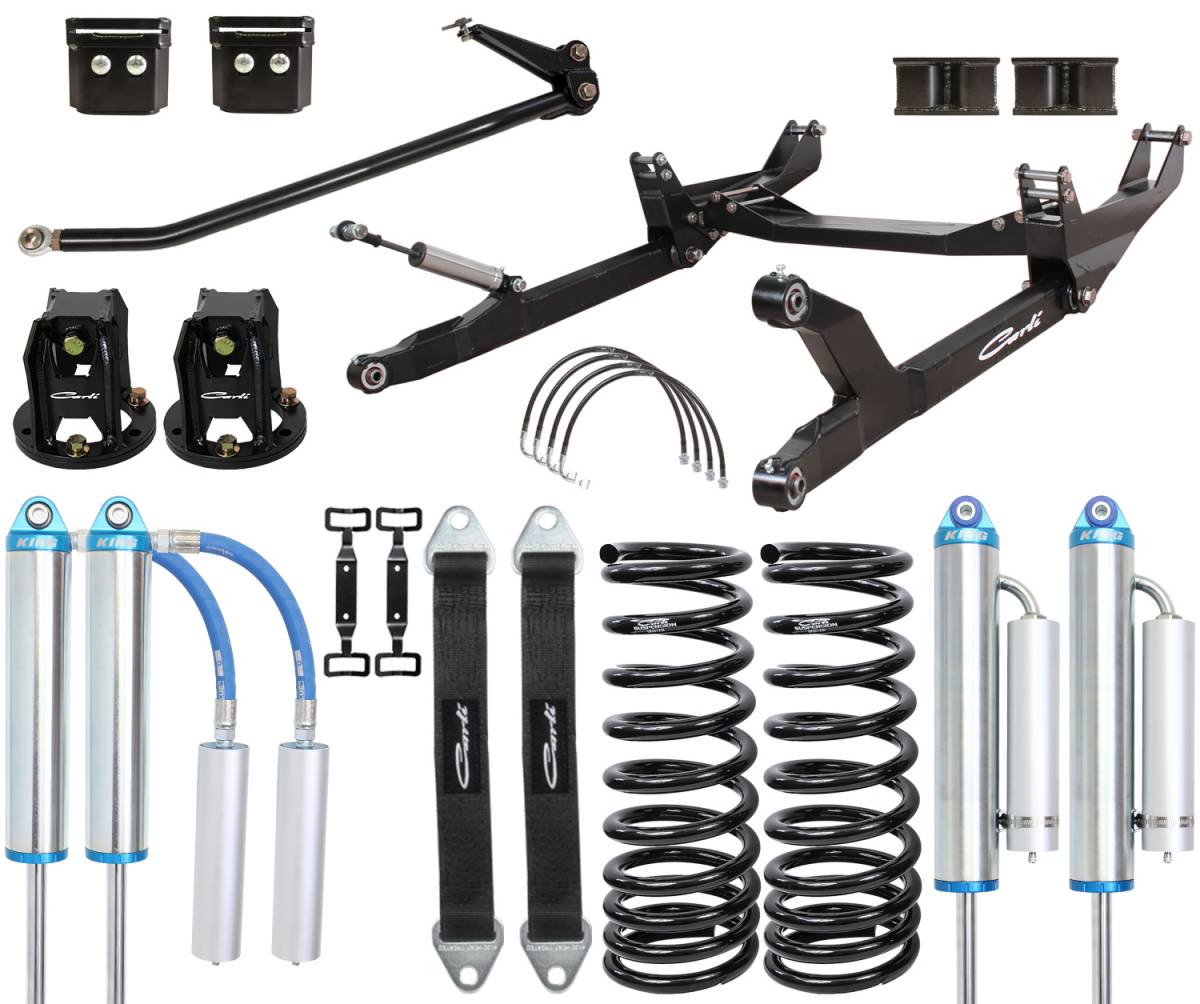

Base Kit Includes:

The Details: The Carli 6” Systems are an entirely different animal than the 3” offerings. There is no entry level; every system is equipped with a custom tuned shock package and Radius Arm Conversion. The Dominator goes a step further and runs a 1-piece, internally gusseted crossmember. The longer, flatter links cycle more linear travel and offer a superior ride quality over extending a short arm to work with a 6” front lift. Complete with a Driver’s side axle shock, Carli radius arms allow the axle to roll as to not bind during articulation; think of it as the strength of a radius arm and articulation capability of a 4-Link. Further, the drop brackets that affix the radius arms to the frame bolt on with no modification to the existing, factory control arm brackets (ensuring the truck can be returned to stock). The arms themselves boast “X” bracing internal to their gusseted, clam-shell structure and are constructed with 3” Currie Johnny Joints and an internally gusseted, 1-piece Crossmember (Dominator and UnChained only) making them both serviceable and nearly indestructible.

The Dominator is the best of our utilitarian style offerings boasting front Carli Signature tuned, King 3.0” remote reservoir shocks so large, we needed bore the factory spring buckets for them to cycle properly. As the old adage goes, there’s no replacement for displacement. In an effort to provide customers with the best product, we do not sell off-the-shelf King 3.0s. We designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; we then tuned the shocks around the custom pistons based on seat-of-the-pants feel. We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.

Your truck will sit 6” higher in the front with 60% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The rear is lifted 4” via Carli’s Full Progressive Leaf Pack. The Full Progressive Leaf Pack replaces the entire factory leaf spring assembly increasing travel and drastically increasing comfort throughout the entire usable travel stroke at the cost of a 15% payload reduction from a standard 2500. This payload reduction can be supplemented back to 3500 SRW factory capacity with the addition of the Long Travel Airbags (with optional spacer for 6” systems) for the best of both worlds; ride quality and payload capacity/load control. The Full Progressive Leaf Pack requires no block to achieve the 4” rear lift height.
