Product Description:
The Unchained is a purpose built kit. 3.5″ Front Kings and 4-Tube Bypass rear 3.0″ shocks are paired with optioned Torsion Sway Bar, High Clearance Control Arms and Full Leafs in the rear for unsurpassed off-road capability from a bolt-on suspension system. A roll cage should be considered at this level of suspension.
Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
6″ 4″ 12.5″ 13″ 3.5″/3.0″ 37″ x 13.5″
A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar and Leaf Spring option to form a complete system.
2003-07 Rams MUST convert to factory “T-Style” steering
SKU: CS-DUC35-6-03
Dodge 6" Unchained 3.5 System, Diesel, 2003-2009 Base Kit

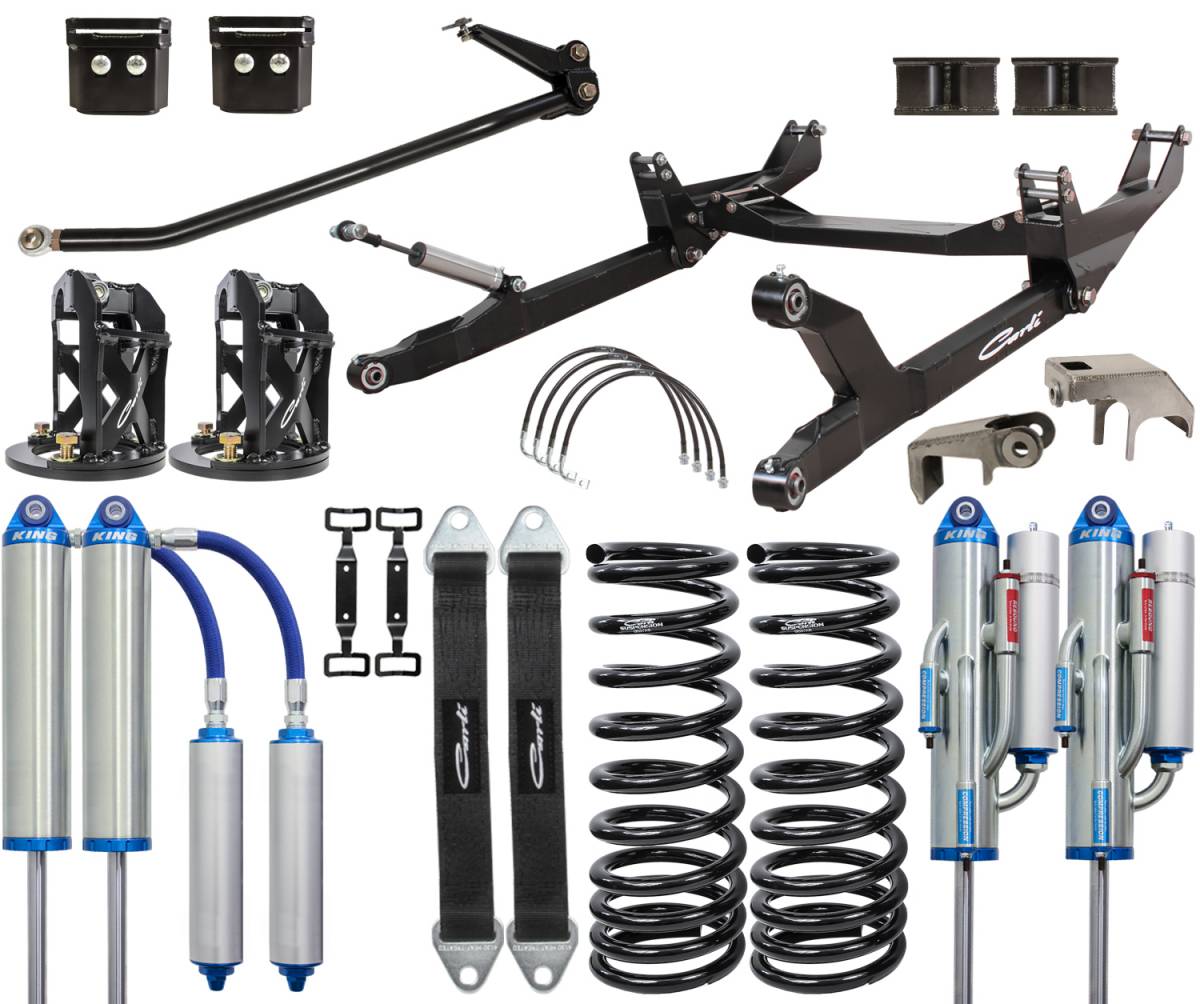

Base Kit Includes:
CS-DMRC6-03-D Multi-Rate Coils
CS-DATB-03 Track Bar
CS-DPRBDROP-6 Track Bar Drop Bracket
CS-DRA6-03-L Radius Arm System with Long Crossmember
CS-DUC35SPKG-6-03-D Unchained 3.5 Shock Package - Stainless Shafts, Short Reservoir Mounts, Limit Straps
CS-DFST525 Fabricated Shock Towers
CS-DRBD-6 Rear Bump Drops
CS-DFBD-6 Front Bump Stop Drops
CS-D6BBL-03 Brake Lines
CS-DRSMKIT-03 Fabricated Rear Shock Mounts
CS-HOLESAWKIT-4.5 4" Hole Saw and Arbor
CS-D30GUSSET Rear Shock Gusset Kit
