Product Description:

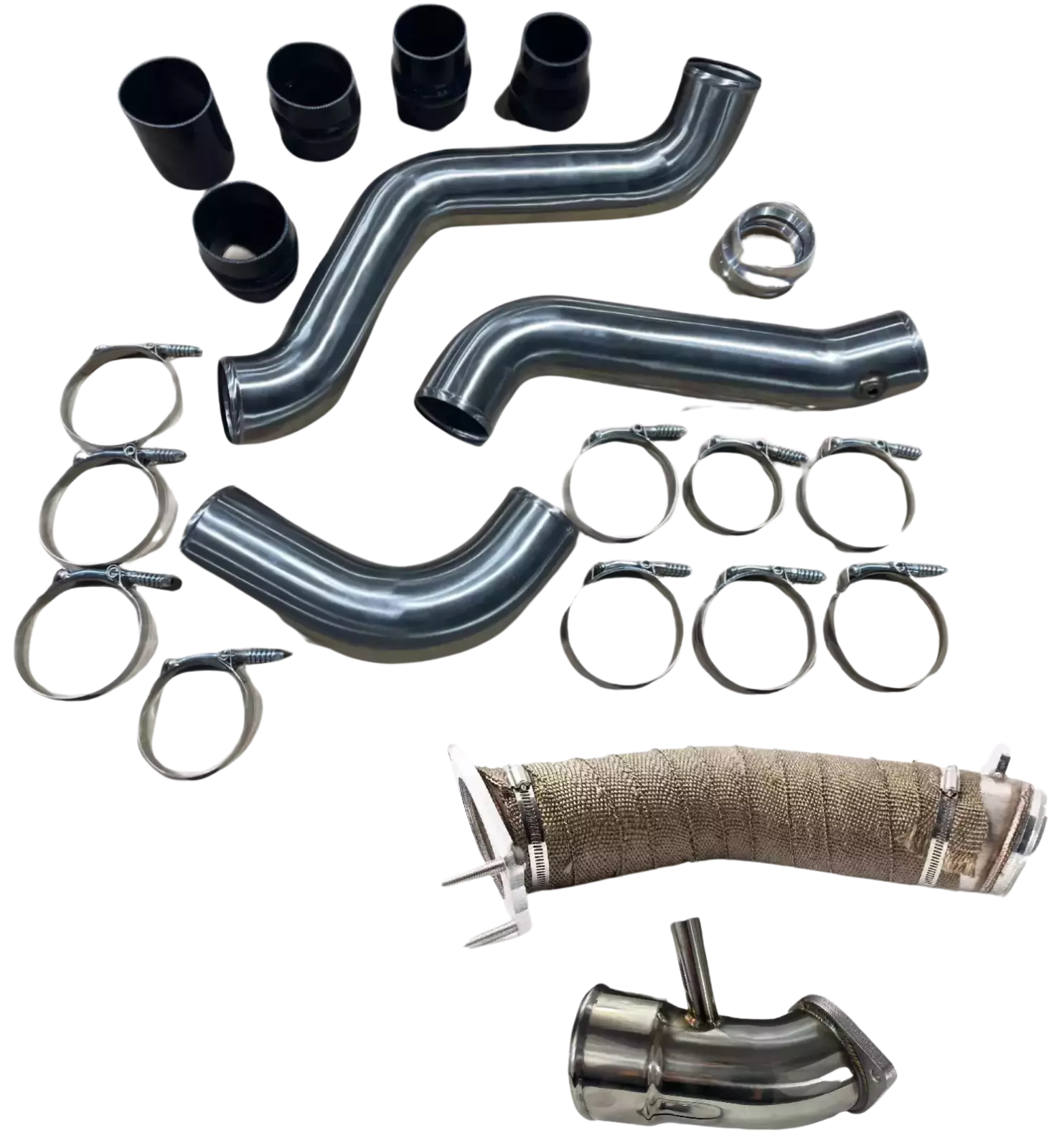

L5P Boost Tube & Turbo Down Pipe & Horn Upgrade Kit
Increases throttle response and reduces turbo lag
Polished (Set)
FOR 2017-2019 CHEVY/GMC 2500/3500 6.6L DURAMAX, L5P
Our massive 3.5in boost tubes are the largest charge air cooler pipes on the market, flowing 680 CFM and 87% more air than stock! Smooth mandrel-bent tubes deliver more air to your engine while reducing boost pressure loss resulting in quicker turbo spool and more power.
Specifications
CDP’s Boost Tubes are the largest charge air cooler pipes in the industry measuring in at a full 3.5 inches. Every other competitive product on the market tops out at 3.0 inches, and your factory pipes are only 2.5 inches with crushed bent corners and flimsy plastic components. By contrast, CDP’s Boost Tubes are made of high-quality stainless steel for maximum strength and durability. With our Boost Tubes' smooth bends, your turbo can spool quicker thanks to improved boost pressure retention for maximum horsepower. CDP’s 3 1/2" Turbo Intake Horn for the 2017-2019 L5P Duramax with factory style Turbo. The OEM plastic intake horn is 2.4" diameter and we experienced a 25HP Gain with our 3.5" Horn when used with a Max Effort Tune. Tuning not required, this horn will work plug and play tuners or OEM calibration.
Key Features
- Huge increase in size and flow over stock and competitors (3.5" vs 2.5")
- Hot Side flows 490 CFM @ 12" vs stock 388 CFM
- Cold Side flows 635 CFM @ 12" vs stock 435 CFM
- Constant 3.5in diameter tubing for the best flow
- Billet venturi couplers maintain boost pressure
- Mandrel-bent stainless steel construction
- Allow the turbocharger to spool up faster
- Spring-loaded constant tension clamps
- Improves airflow by over 26% and 45%
- 5-ply heavy-duty silicone couplers
- Bung for a temperature probe
- 3 1/2" Intake Horn
- O-Ring
- Mounting studs and nuts
- Polished Stainless
NO Tuning required, bolt on!
Will fit on stock truck no other modifications or upgrades necessary!
The CDP Duramax downpipe is built from 3" mandrel bent 304 thick wall stainless steel . A fiberglass based heat wrap is also used to provide further insulation from the passenger compartment and firewall due to the closer proximity of the larger, higher flowing pipe.
- 3" Stainless Steel Construction
- Thermal Coated & Heat Wrapped Increased
- Performance & Efficiency
- Improved Throttle Response
- Reduced EGT's
