Product Description:
SKU: CS-FCOMKIT-0508

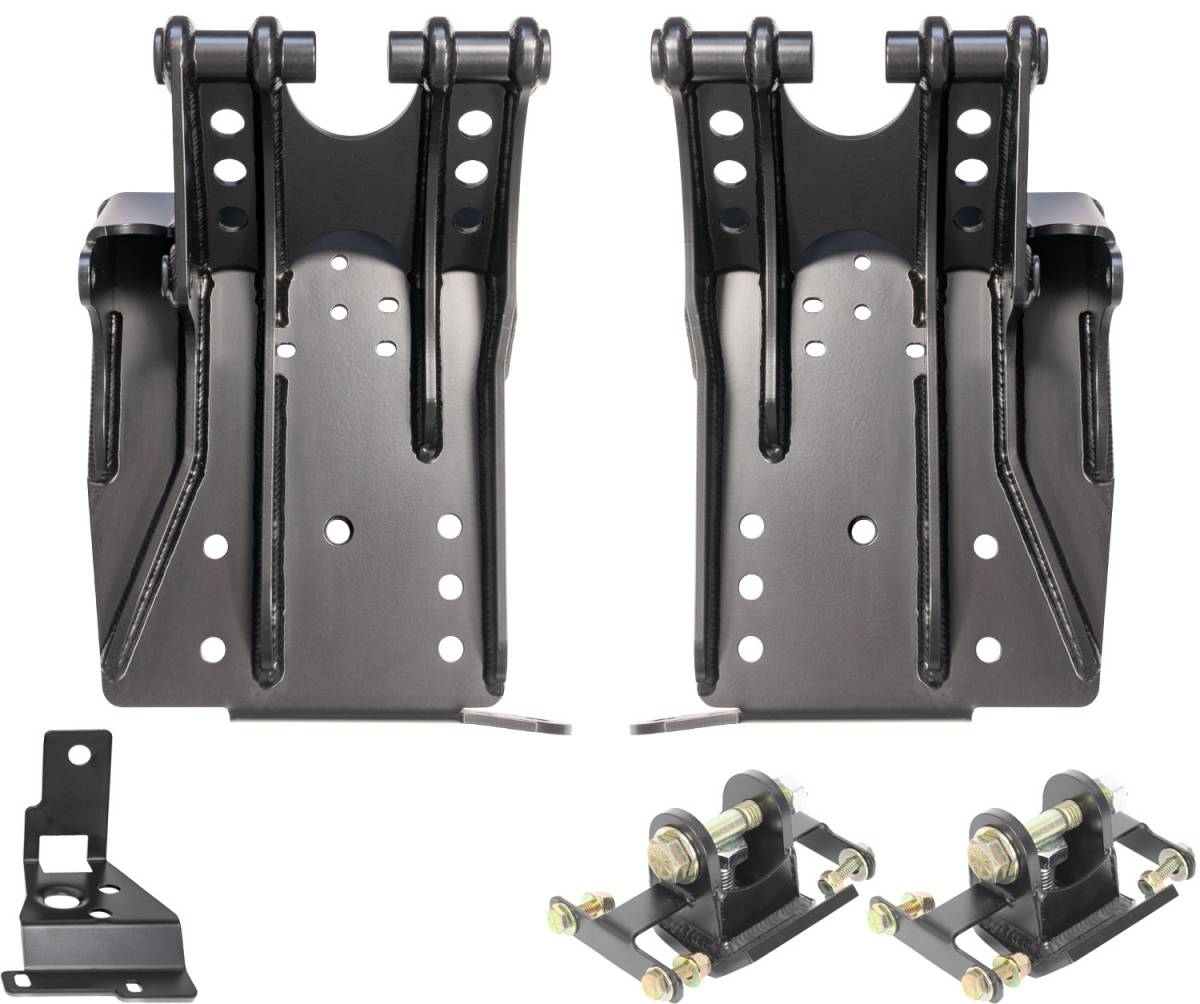

- Ford Coilover, Upper and Lower Mounts
- 1/4" Cold Rolled Steel Construction
- Powder Coated for Finish Durability
- Bypass Shock Ready
- Fitment: 2005-2016 F250/F350
The 05-16 Super Duty Platform has a riveted coil bucket from the factory. Punch these rivets, drill the frame holes to 1/2″ and bolt in a custom-spec Carli Coilover to allow for and amazing ride and infinite adjustability.

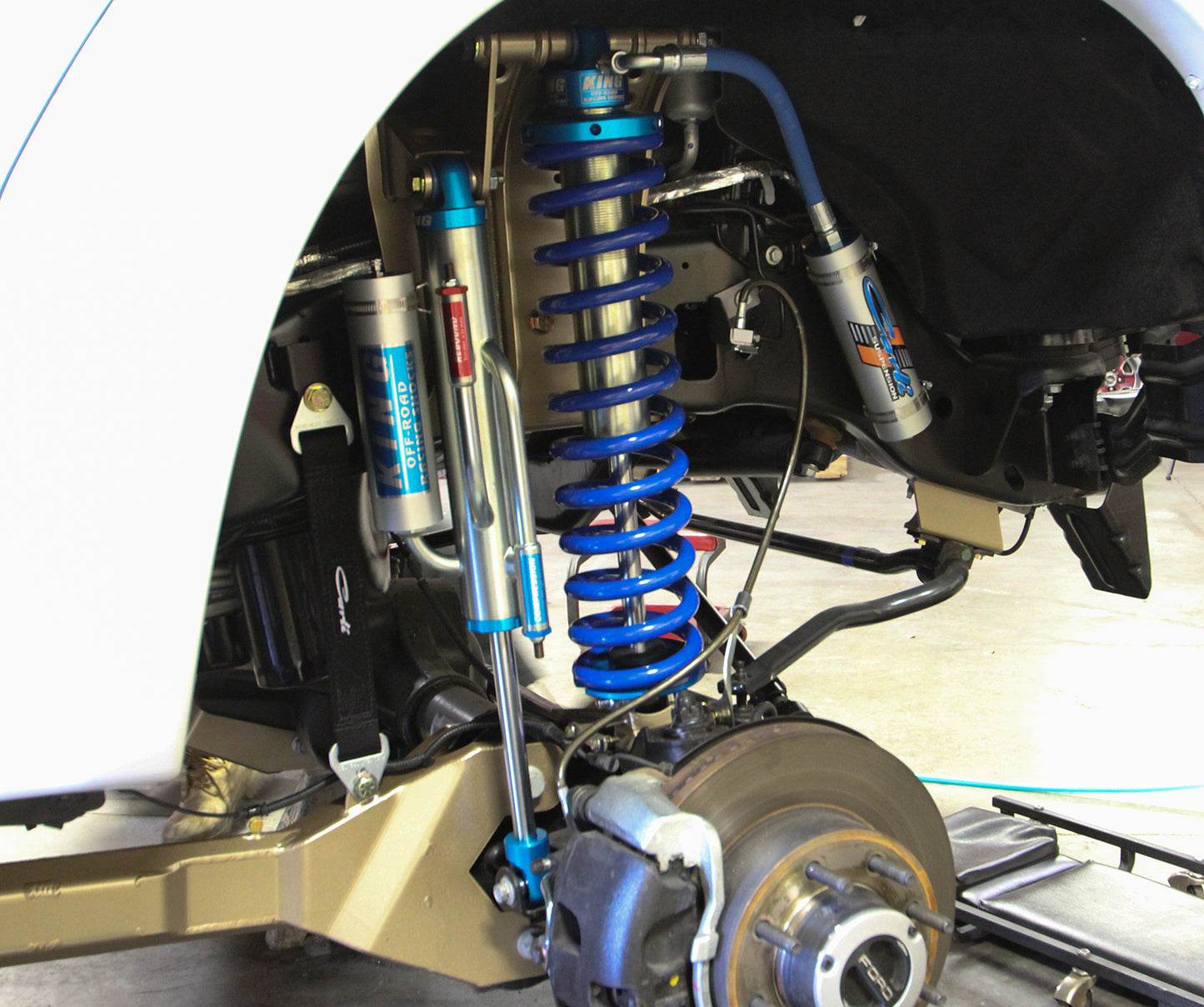

Each mount is constructed out of 1/4″ cold rolled steel for superior strength. These mounts bolt in place of the existing riveted coil bucket using 1/2″ Grade 8 fasteners. The coilover sits atop the axle in place of the coil-spring. The upper mount is lifted as high as possible to maximize travel length.
Bypass shock mounts are also incorporated into the brackets (positioned in the factory shock location) should go-fast desert shenanigans be in store.
