Product Description:

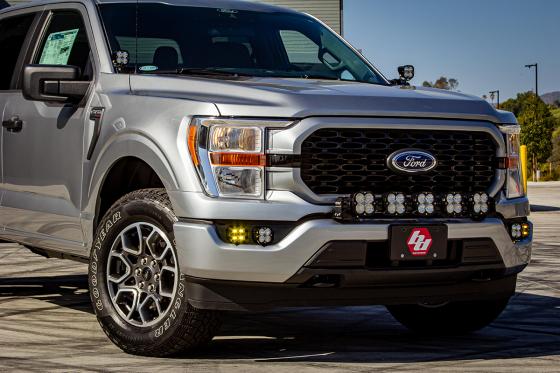

This kit is perfect if you are looking to spice up your brand new 2021 Ford, F150 with a premium lighting kit. This kit specifically utilizes a set of Squadron Clear SAE and a set of Squadron Pros in driving combo lens pattern.
This kit also includes powder coated fog pocket brackets, stainless-steel hardware as well as our custom harness. One pair of Squadrons will be operable off your OEM fog light switch, and both pairs of Squadrons can be turned on with our provided toggle switch harness.
Specifications (Per SAE):
- Lumens:2,480 Utilizing 4 LEDs
- Wattage/Amps:22W / 1.6A
- Dimensions:3.07 Inch x 2.77 Inch x 3.07 Inch
- Weight:12 ounces
- LED Life Expectancy:49,930 Hours
- Front Lens:Hard Coated Polycarbonate
- Housing:Powder Coated Cast Aluminum
- Bezel:Billet Machined Aluminum
- Hardware and Bracket Material:Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Specifications (Squadron Pro):
- Lumens:4,600 Utilizing 2 types of Cree LEDs
- Wattage/Amps:40W / 2.90A
- Dimensions:3.07 Inch x 2.77 Inch x 3.07 Inch
- Weight:12 ounces
- LED Life Expectancy:49,930 Hours
- Front Lens:Hard Coated Polycarbonate
- Housing:Hard Anodized and Powder Coated Cast Aluminum
- Bezel:Billet Machined Aluminum
- Hardware and Bracket Material:Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Baja Designs Features:
- Satisfactions Guarantee:30 Day Money Back Guarantee
- Limited Lifetime Warranty:Complete Purchase Protection
- uService:Replaceable Lenses And Optics
- ClearView:All The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive:Only LED Driven At 100 Percent
- 5000K Daylight:Less Driver Fatigue, Natural Color
Application:
Ford F150 (21 - On)

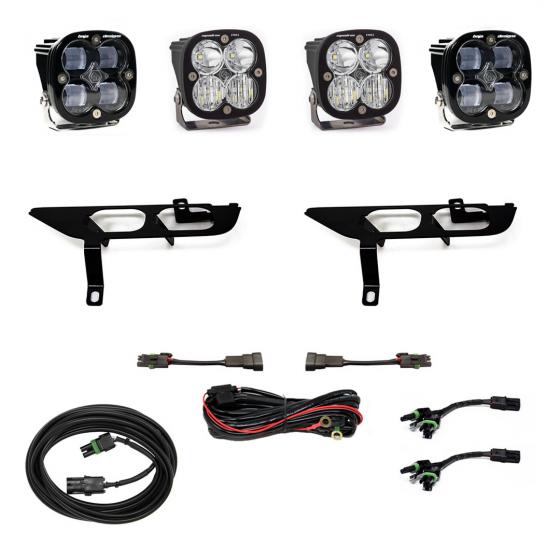

Included:
- Squadron Pro, Driving/Combo Pair
- Squadron SAE, Clear Wide Cornering Pair
- x2Fog Pocket Brackets
- x2 Wire Adapters
- x1 Toggle Switch Harness
- x2 55 Inch Splitters
- x2 small Splitters
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree ) and spot (8 Degree ) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering:BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
