NCB Diesel

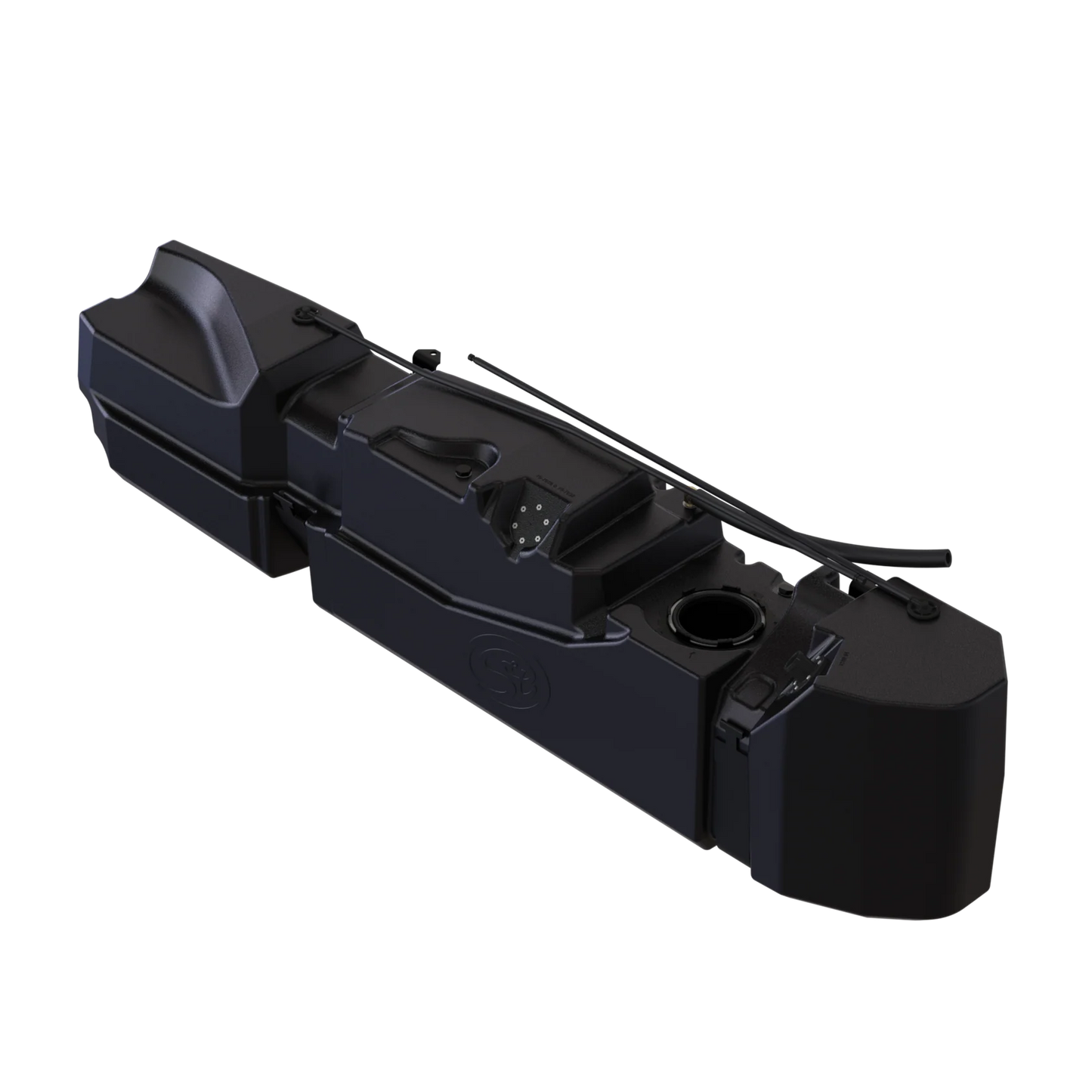

S&B 56 Gallon High-Capacity Fuel Tank for 2013-2026 Dodge Ram Cummins 6.7L, Crew Cab Long Bed
S&B 56 Gallon High-Capacity Fuel Tank for 2013-2026 Dodge Ram Cummins 6.7L, Crew Cab Long Bed
SKU:10-1033
Regular price
$1,449.00 USD
Regular price
Sale price
$1,449.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
No reviews
Product Description:
| Compatible with gooseneck and 5th wheel | Yes |
| Compatible with oe skid plate | No |
| Dimensions | 82.31" X 17.68" X 18.99" |
| Drain | No |
| Embedded fitting thread size | 1/2" NPT |
| Ground clearance compare to oe tank | 2.75" Lower |
| Sending unit | OE |
| Straps included | Yes |
| Sump | No |
| S&B Capacity (Approximate) | 60 Gallons |
| Tank type | Midship |
| Transfer pump ready | Yes |
| Weight dry | 48lbs |
NEARLY DOUBLE THE CAPACITY
The S&B 56 Gallon High-Capacity Fuel Tank is a direct replacement for the 31 gallon factory tank. With 25 more gallons of fuel available, the S&B tank allows you to travel over 1,000 miles between fill ups, whereas the smaller stock tank will only get you about 600 miles. Enjoy the freedom, flexibility and time saved with a significantly bigger tank.
UPDATED DESIGN
This is the updated style tank that includes fitment on trucks with a one piece driveshaft & the 2025+ trucks.
STRONGER THAN STOCK
Made with 1/4" thick cross-linked high density polyethylene (XLPE), the S&B tank has significantly more impact strength than the OEM linear polyethylene tank. This is a big advantage when trekking offroad.
HI-FLOW NOZZLE COMPATIBLE
This high-capacity fuel tank works seamlessly with the high-flow fuel pumps found at truck stops and is engineered to handle rapid fueling without premature shut off or causing overflow. With its optimized venting, fill-ups are smooth and hassle-free allowing you to get back on the road quickly.
Significantly increase the range on 2013-2026 Ram Cummins 6.7L Crew Cab Long Bed trucks by upgrading to the S&B 56 Gallon High-Capacity Fuel Tank — a direct, bolt-on replacement for the stock 31 gallon tank.
Important Notes:
- The fuel gauge will continue to work however the distance to empty will not be accurate. There is no way to update the fuel tank size for the distance to empty to be accurate.
- OEM sending unit & float are reused because the S&B Tank is taller the gauge will stay on full for the first 8-10 gallons
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
WARNING: This product can expose you to chemicals including carbon black, silica - crystalline, methylene chloride, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm.
